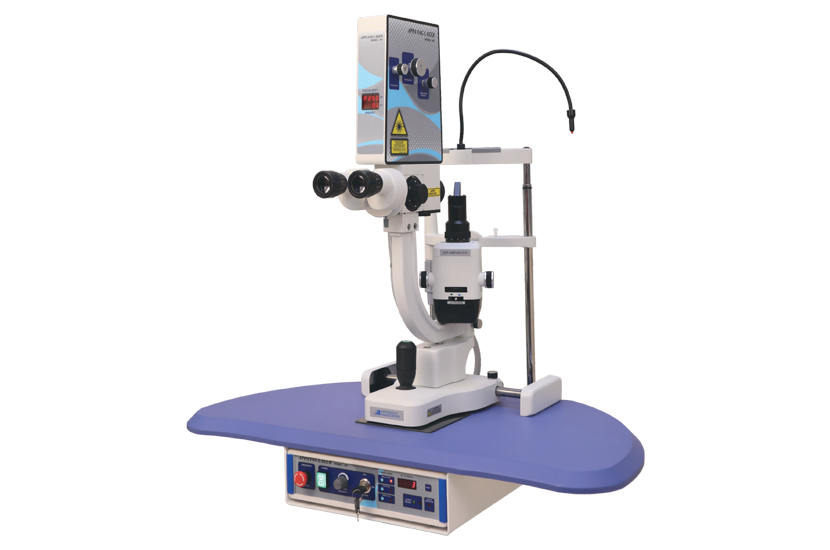

APPA YAG LASER 307

The APPA 307 is an ophthalmic Nd:Yag laser, for the treatment of secondary cataract and wide-angle glaucoma. The laser is integrated into a 5-magnification Zeiss type slit lamp. Focusing is done with a Dual Beam target beam system. It has output energy adjustable from 0.2mj to 10mj, as well as double or triple pulse capability. The beam focus can be shifted ±500 µm posterior or anterior to the target. With an ergonomic and specially designed table with electric height adjustment. Includes iridectomy-capsulotomy lens.

Product Features:

Technical Specifications for YAG Laser APPA 307

The device should be suitable for the treatment of secondary cataract and iridectomy for the treatment of wide-angle glaucoma.
Laser beam and lamp illumination to be coaxial.
The laser must be Q-Switched Nd:YAG type at a wavelength of 1064nm and have a super Gaussian mode
The laser has a CQ crystal technology implemented for a better stabilized output shot
The cone angle must be: 16°
The laser energy range in single spot should be: 0.2mJ-10mJ
Max. laser energy at single pulse is: 10mJ, Double pulse is: 24mJ and Triple pulse is: 37mJ
Continuous Variable is more than 50 steps
Pulse repetition frequency 2.5 Hz (Max.)
Pulse duration is less than 4 ns (Type 2 – 3ns)
The optical breakdown is performed typically at 2.5mJ in air
The focus diameter is: 10µm in air(1/e²)
The spot size (In Air) is: 8µm (Full width at half maximum)
The focus shift is: ±500µm (Posterior – 0, 150, 250, 375, 500 , Anterior – 0, 150, 250, 375, 500)
The pulse width is less than: 5ns
The aiming beam is a 2 Point Astigmatism Distortion detection Laser diode at 670nm with power output 3µW – 150µW
To have a built-in protection filter for the operator
Shots are made by pressing the joystick button.+

To have a control console and indicators for:

The indication of energy during the treatment process.
The indication of the total number of pulses and reset button
The activation of the Laser.
The adjustment of the burst function.

The cooling of the device is made by ambient air
It has a Galilean type of SL microscope with 5 steps of magnification
The focus distance is: 140mm (Optional : Co-observation tube parallel F-140mm)
The ionization in water is: <= 1mJ
The interpupillary distance range is from 50mm to 78mm convergent
The eye pieces diopter range from +8D to -8D
Eye pieces 10X (Optional 12.5X)
Illumination12V – 30W Halogen
Slit adjustment 0-14mm
Slit length ⌀14.0, 10.0, 9.0, 5.0, 3.0, 2.0, 1.0mm
Slit rotation 0°-180°
Filters Heat absorbing, Cobalt Blue and Red free green
Power supply100 – 240V ± 10%, 50 – 60Hz
Dimension Weight 26kg (approx.)

Categories: OPHTHALMOLOGY, Therapeutic Lasers

Description

Specifications

Laser SLT

Q-switched 532 nm Frequency Doubled Nd:YAG

Laser Wave length

1064nm

Mode

Super Gaussian

Cone Angle

16°

Mode of operation

Q-Switched (CQ Crystal)

Min.laser energy

0.2mJ-10mJ (single pluse)

Max.laser energy

Single pluse 10mJ
Double pulse 24mJ
Triple pulse 37mJContinuous Variable / more than 50 steps

Pulse repetition frequency

2.5 Hz (Max.)

Pulse duration

< 4 ns (Type 2 – 3ns)

Optical breakedown

Typically 2.5mJ in air

Focus diameter / Spot size (In Air)

10µm in air(1/e²) / 8µm (Full width at half maximum)

Focus shift

±500µm (Posterior – 0, 150, 250, 375, 500
Anterior – 0, 150, 250, 375, 500)

Aiming beam

2 Point Astigmatism Distortion detection
Laser diode 670nm
Power output 3µW – 150µW

Cooling

Ambient Air

Magnification

5 step Galilean Method

Focus distance

140mm (Optional : Co-observation tube parallel F-140mm)

Ionization in water

<= 1mJ

Interpupillary distance

50mm to 78mm Convergent

Diopter

+8D to -8D

Additional information

Brand	Appasamy Associates
