Description
Specifications
| Laser | Diode laser |
| Display | Color-Touchscreen |
| Wavelength: Power* | 810 nm: 8 Watt 980 nm: 12 Watt |
| Pulse length | 100 µs bis 45 s / CW |
| Pulse pause | 100 µs bis 45 s / SP |
| Aiming beam | Green 532 nm and red 650 nm, adjustable |
| Fiber coupling | A.R.C. Laser 300 µm and U.C. |
| Dimensions WxDxH | 142 x 163 x 174 mm (opened) 142 x 102 x 192 mm (closed) |
| Weight | 1.2 kg |

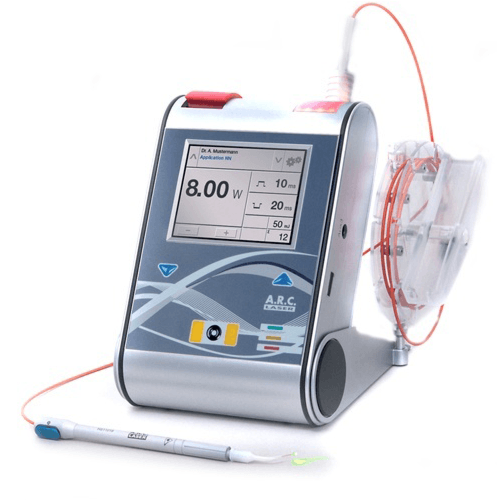

Ophthalmological applications of the FOX 810 Diode Laser:
- Glaucoma therapy (CW, MicroPulsing)
- TCP – Transscleral Cyclophotocoagulation
- CPC – Cyclophotocoagulation
- PTT – Photo Thermal Therapy (IMMK, SCC)
- Iris cysts, uveal melanomas, eyelid tumors
- Distichias, ectopic cilia
- Retinal detachment (RD)
- Endocoagulation (ECP)
