Description
Specifications
Refraction
- Sphere: -20.00~+20.00D (increment 0.01D/0.12/0.25D) (VD=12mm)
- Cylinder: -8.00~+8.00D(increment 0.01D/0.12/0.25D)
- Axis: 0° ~ 180° (increment 1°)
- VD: 0mm/12mm/13.5mm/13.75mm/15mm (optional)
- PD: 10~85mm (increment 1mm)
Keratometry
- Corneal curvature radius measure range: 5.5mm to 10.0mm (increment 0.01mm)
- Meridian axis measure range: 0° ~ 180° (increment 1°)

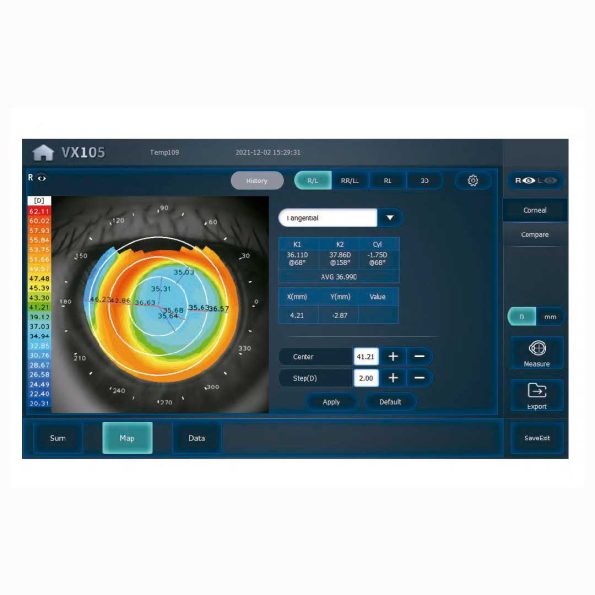

Topography
- Refractive measurement range: 33.80D ~ 61.4D (n=1.3375)
- Cornea coverage: 0.75mm ~ 10mm

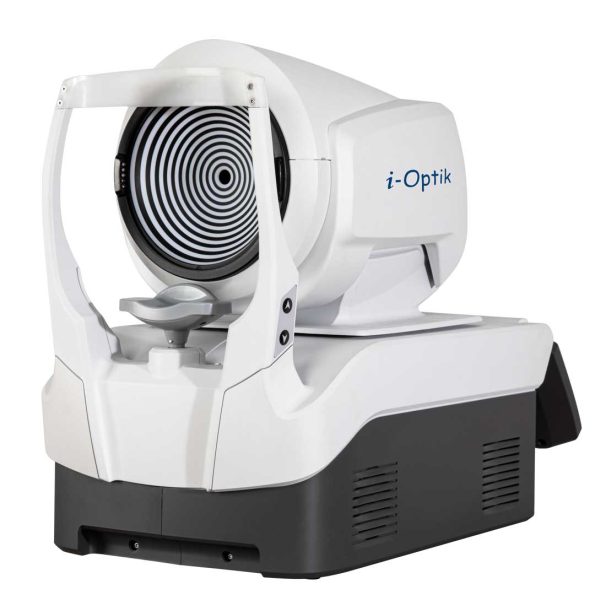

- Measuring method Placido ring
- Number of placido rings: 24
- Number of measuring dots: 6,144
- Number of pixels: more than 100,00
Device Specification
- Printer: 33.80D ~ 61.4D (n=1.3375)
- Measurement method: 3D auto tracking
- Screen: 10.1-inch color LCD touch screen
- Working distance: ≈94mm
- Chin rest bearing limit: around 2.5kg
- Auto tracking moving range: 102mmx20mmx51mm (XYZ)
- Chin rest moving range: ≈62mm
- Size: 496mmx320mmx490mm
- Weight: 26kg
