Description
Specifications

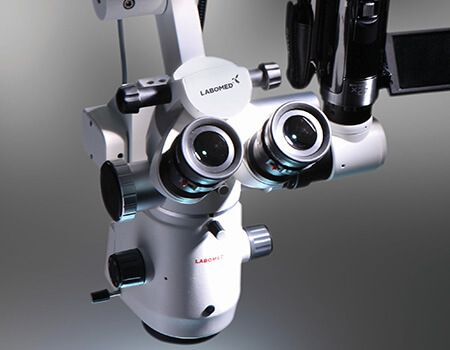

Binocular Tube: 45° inclined head
Apochromatic Magnichanger: 5 steps: 0.4X, 0.6X, 1.0X, 1.6X, 2.5X
Eyepiece
- Standard: WF 10X/16 mm with eye guards Optional: WF 12.5X/16 mm with eye guards All eyepieces have diopter adjustment ± 5 mm and diopter lock
Vertical Movement of arm: 550 mm
Microscope carriers

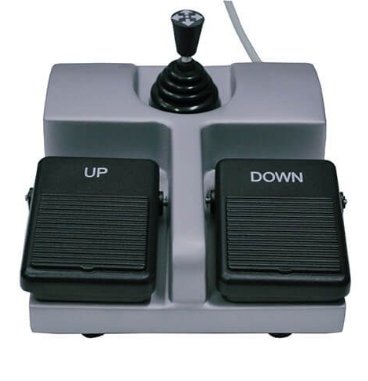

- Multi-axial (XYZ) foot control (PRIMA OPH X-Y & Z AXIS)
- Single axis (Z) foot control (PRIMA OPH Z AXIS)
- Built-in-Filters
- Green & Blue
Objective
- Standard: f=200 mm, Optional: f=175 mm
Light Source: UV & IR free 50W LED

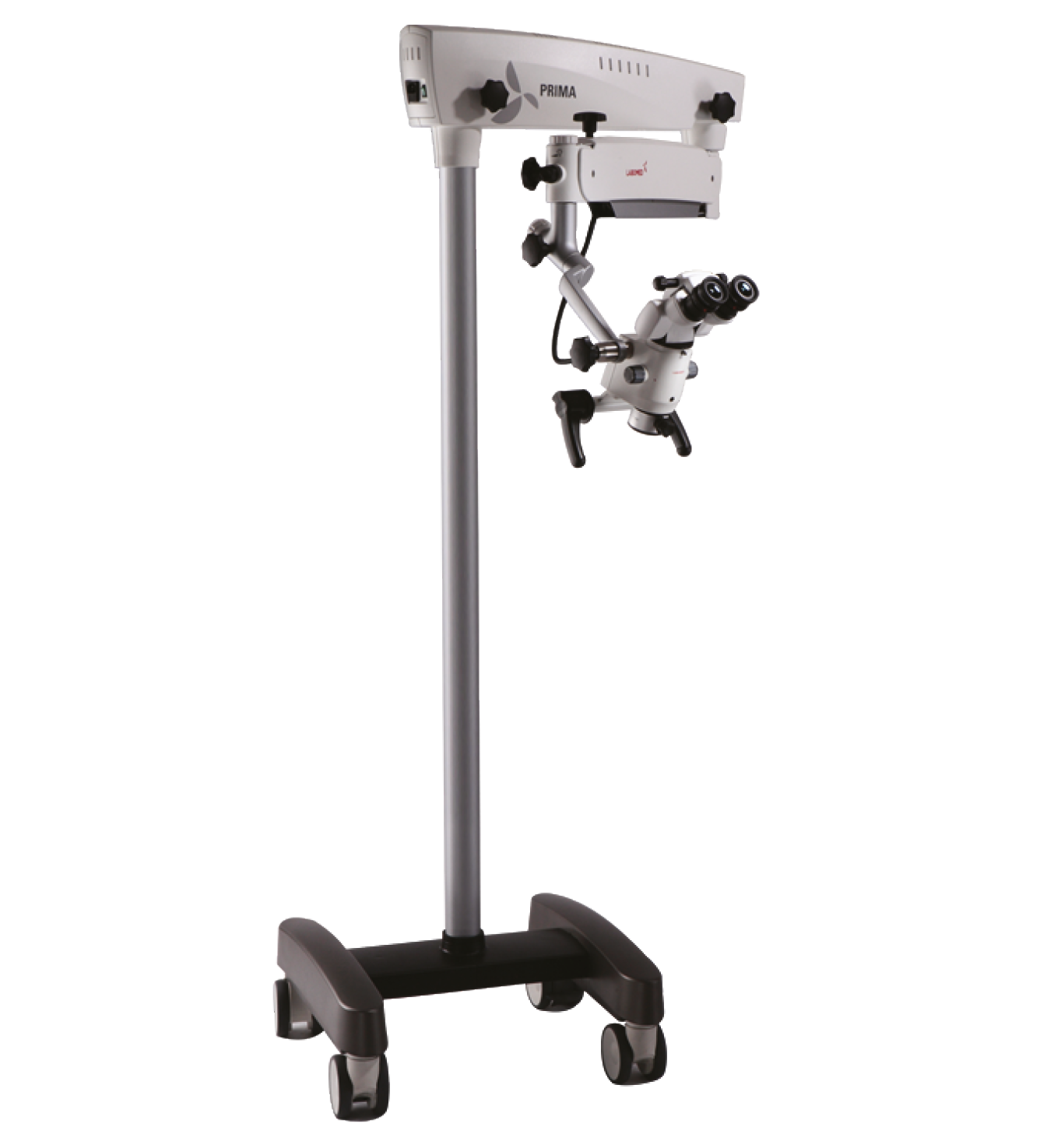

Stand: H-base on 4 locking castor wheels, optional wall or ceiling mounts

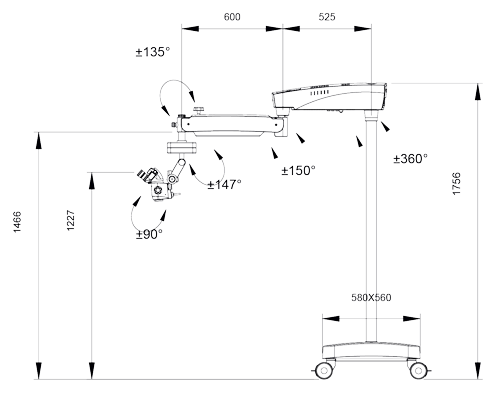

Arm: Swivel 525 mm, Suspension 600 mm
Accessories (Optional)
- 0-210° tiltable ergonomic head
- Double beam splitter
- Assistant binocular attachment
- ProLine range of camera adapters
