REICHERT 7CR

REICHERT 7CR

Reichert

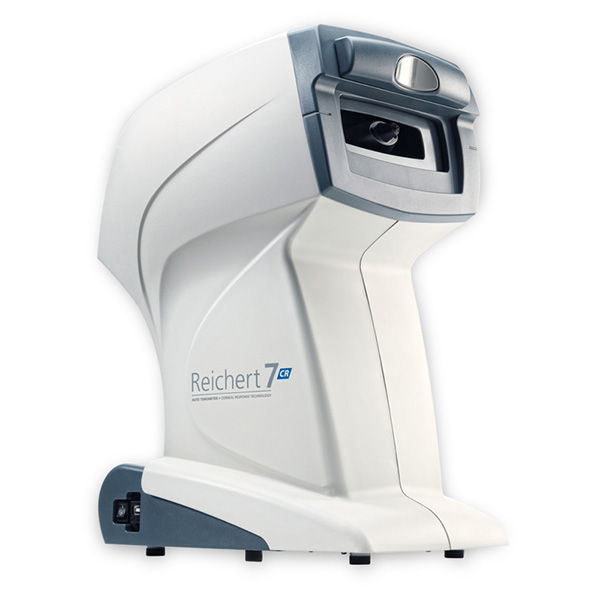

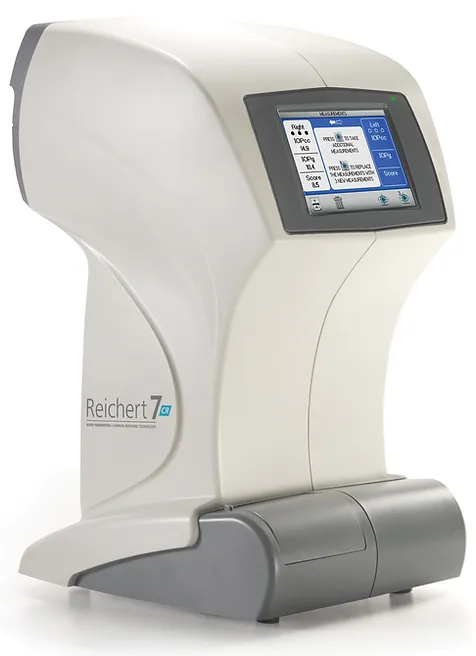

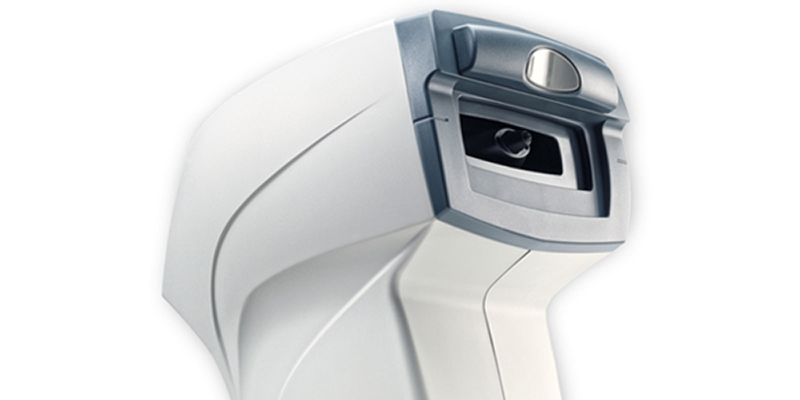

The Reichert 7CR from Reichert Technologies utilizes a patented bi-directional applanation process to characterize the biomechanical properties of the cornea and reduce their impact on the IOP measurement. This measurement, referred to as Corneal Compensated IOP (IOPcc) is minimally affected by corneal visco-elastic properties, thickness, or surgical procedures such as LASIK or PRK. As such, IOPcc is a better indicator of glaucoma risk than other methods of tonometry, including Goldmann Applanation.


Product Features

  • Patented bi-directional applanation
  • Alignment is completely automated
  • Measurement is non-contact so no anesthesia is required
  • One-touch, triple measurement mode
  • Internal printer simplifies record keeping

Description

Specifications


  • Measurement Range: 7 – 60 mmHg
  • Optional Chinrest Specifications: Vertical Travel: 65 mm, motorized
  • Weight: 23 lbs., 10.4 kg
  • Weight: 23 lbs., 10.4 kg
  • Height: 19.75 in., 50.2 cm
  • Width: 10.5 in., 26.7 cm
  • Frequency: 50/60 Hz
  • Depth: 14 in., 35.6 cm
  • Voltage: 100-240 VAC



Additional information

Brand

Reichert 7CR 0410 Brochure 1 2

Download
