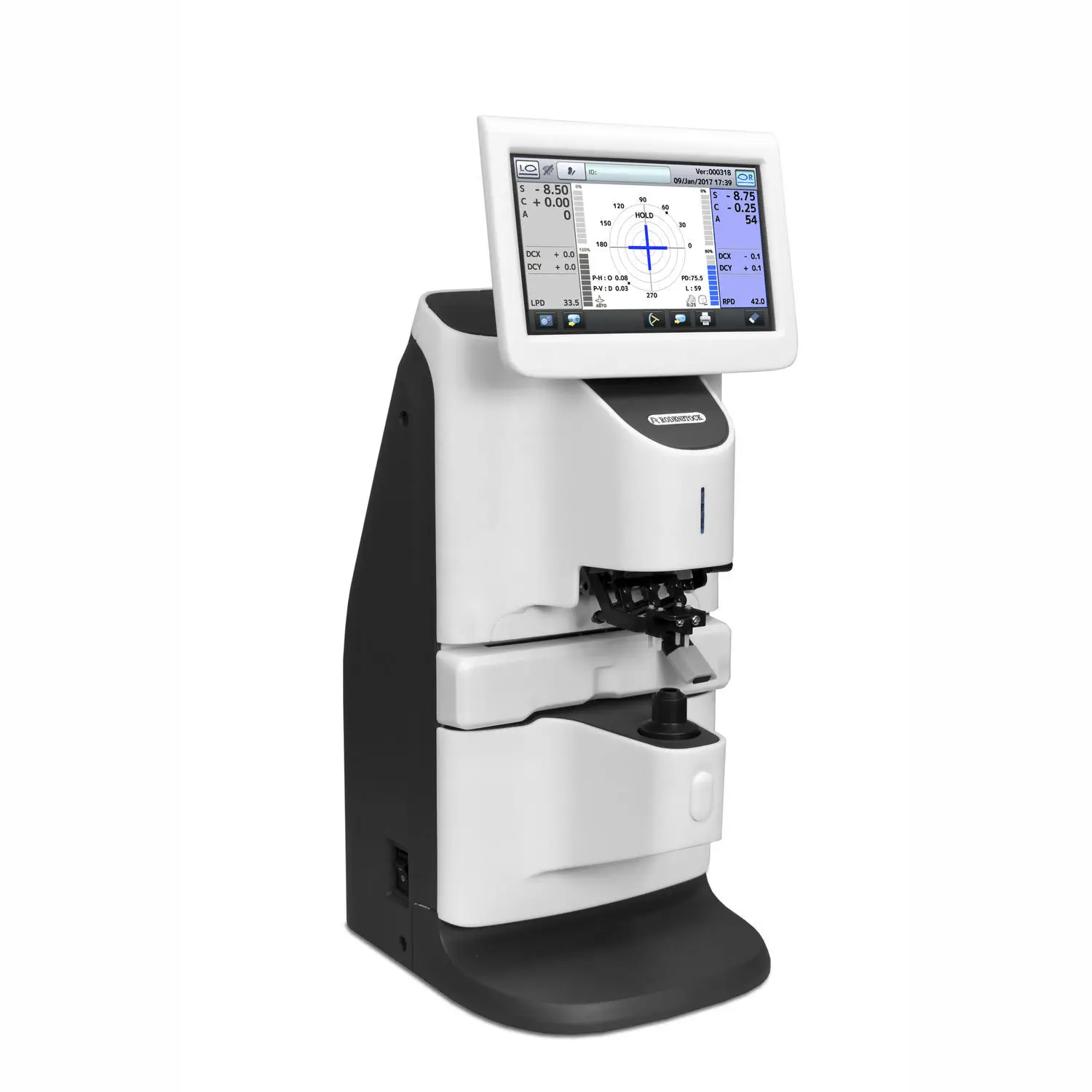

RODENSTOCK AL-6400/6600

RODENSTOCK AL-6400/6600

Rodenstock

AL-6400 use wavefront technology to measure corrections in spectacle lenses and contact lenses, detect progression of multifocal lenses and test simultaneously the transmission of UV and blue light. Our AL 6400 and 6600 lensmeters combine performance with connectivity.


Product Features

  • Wavefront technology
  • Simultaneous measurement of UV/Blue light transmission and power
  • Lens mark recognition support

** The AL-6600 further comes with automatic PD measurement and Wi-Fi connectivity.

Description

MEASUREMENT RANGE


  • Spherical power (SPH): +/- 25 D
  • Cylindrical power (CYL): +/- 10 D
  • Axial angle (AXIS): 0 to 180 degrees
  • Prism: Rectangular coordinates / Polar coordinates / Displacement
  • Lens modes: Standard / High index / Bifocal / Progressive lenses
  • Wavelength: 535 nm
  • Diameter of the lens: φ20 to 120 mm, more than φ5 mm for CL
