RODENSTOCK CX 800

RODENSTOCK CX 800

Rodenstock

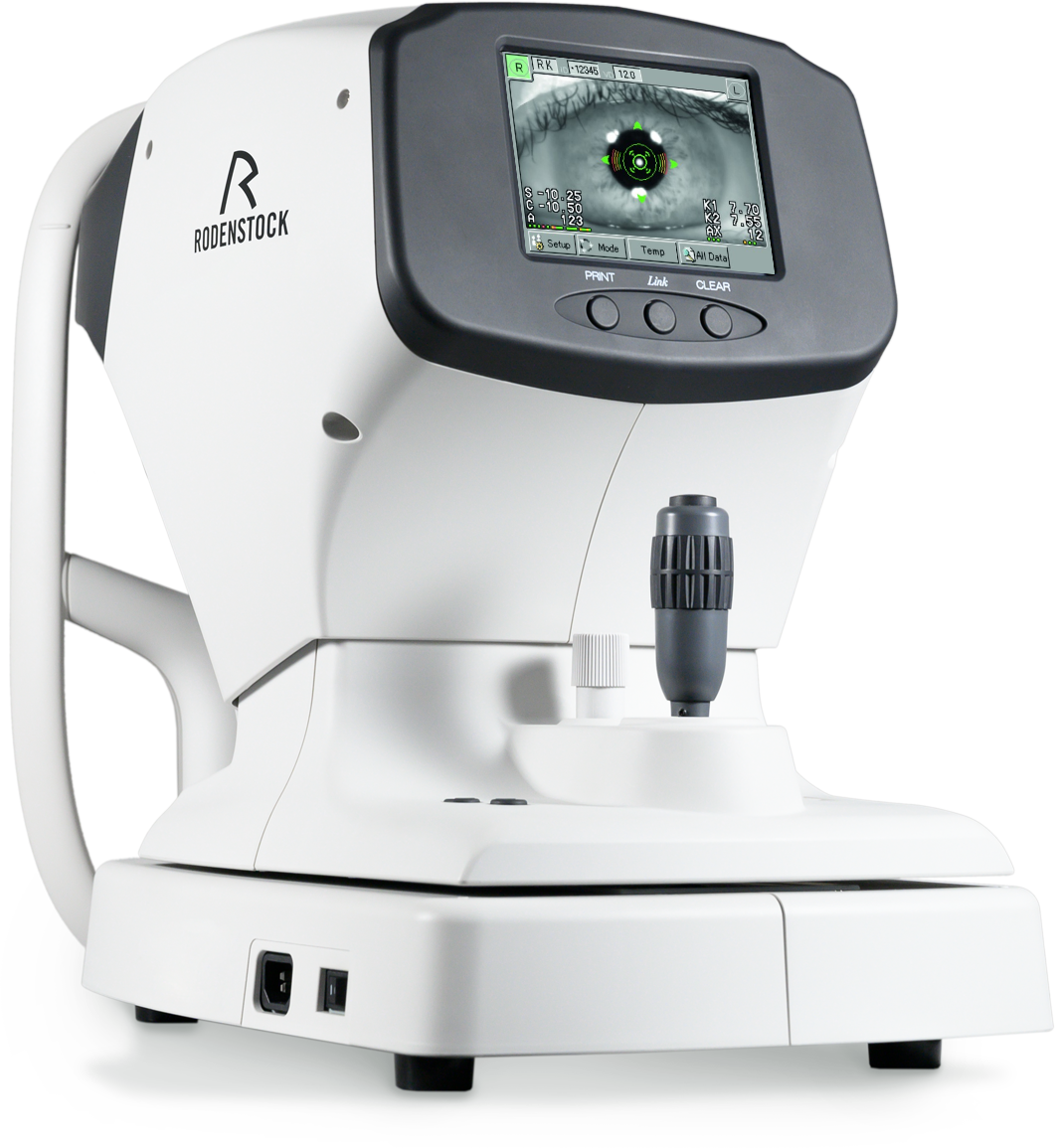

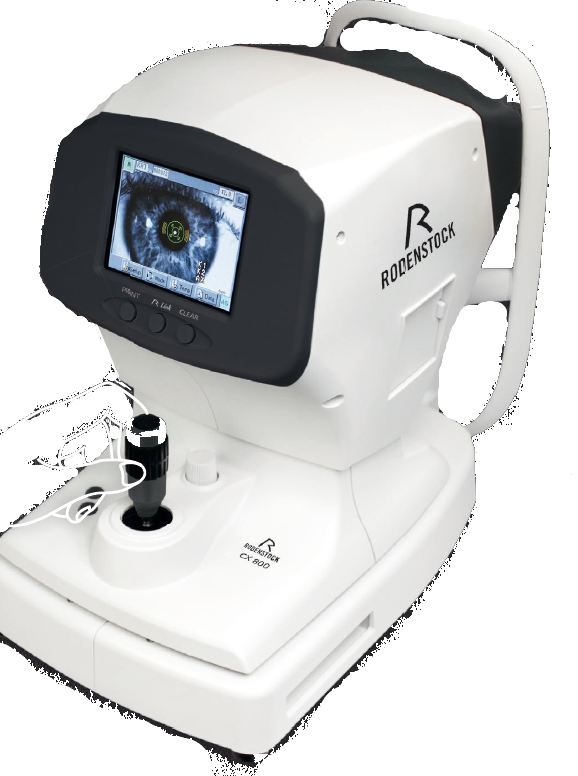

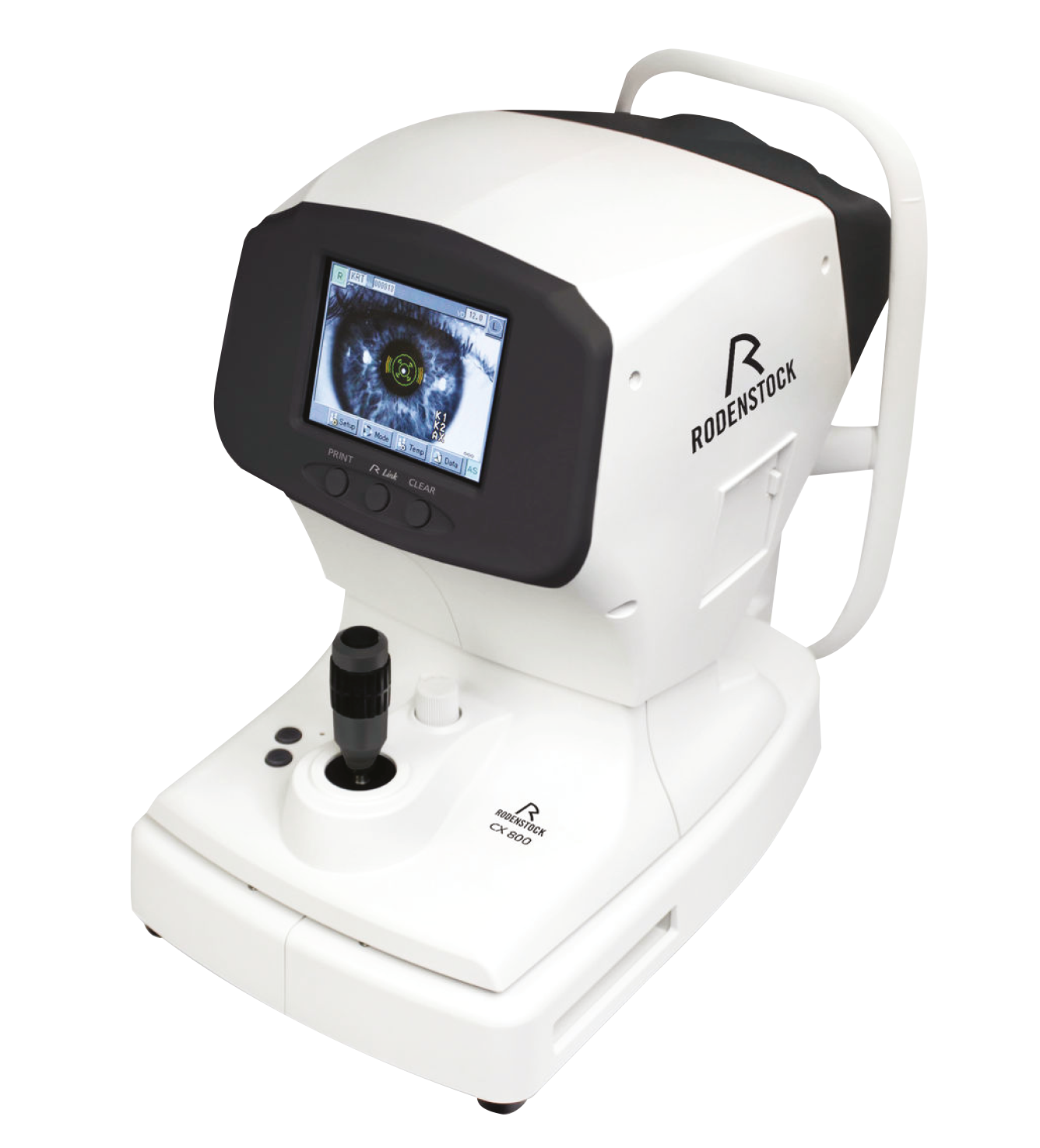

The CX 800 appeals to all users looking for an economical solution without sacrificing accuracy of refraction, central keratometry values and cornea and pupil measurement. The Rodenstock Refractor-Keratometer is an integral part of modern eye diagnostic. Highly accurate measurements combined with the very short examination time and easy handling makes working with the Rodenstock CX 800 professional and quick. You can operate and align the CX 800 through the combination of joystick and touch screen – all this in a very short time.


Product Features

  • Central K-values

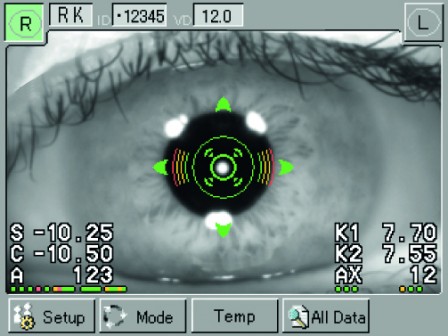

  • Auto measurement
  • Pupil & cornea ø measurement

Description

Specification


Spherical Refractive Power

  • Measurement range: -25.00 D to +22.00 D (at VD = 12.0 mm)
  • Display unit: 0.01 D / 0.12 D / 0.25 D

Cylindrical Refractive Power

  • Measurement range: 0 D to ±10.00 D (at VD = 12.0 mm)
  • Display unit: 0.01 D / 0.12 D / 0.25 D

Astigmatism Axial

  • Measurement range: 0° to 180°
  • Display unit: 1°




Others

  • Built-in printer: Thermal printer
  • Output: RS-232C
  • Display: 5.7“ colour LCD
  • Chin rest: electr. controlled

Additional information

Brand

RODENSTOCK CX800 KARTELA SOS 3
