Description

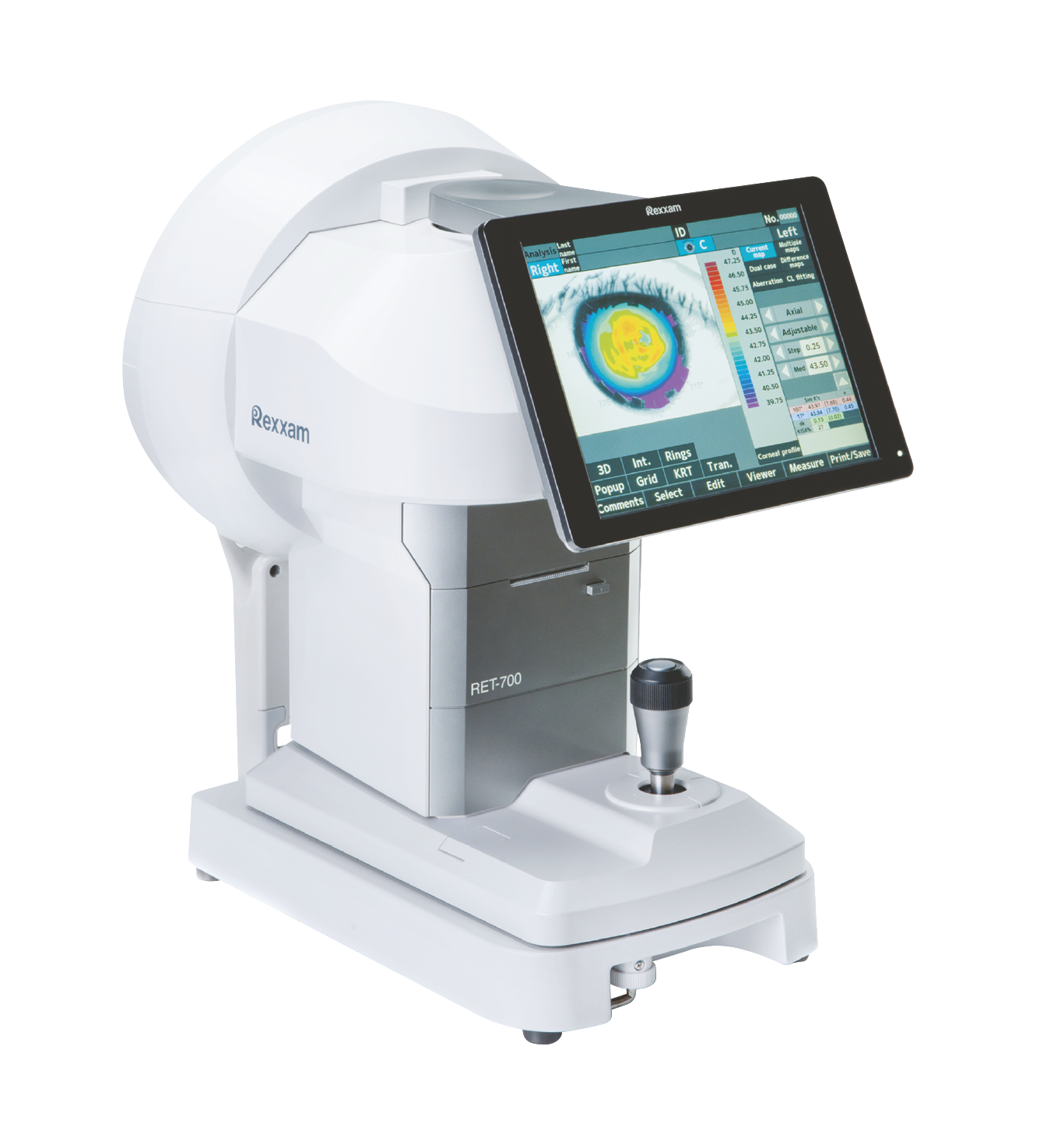

All-in-one

Measurements of the auto ref, kerato and topography are taken at the same time. Maximum 6 images of topography are captured continuously.

Wide Topo Measurement Range

The measurement range is from 0.4mm to 10.7mm(R8.0).
Also, the peripheral corneal (approx. 16.00mm) is measurable.

A Variety of Analysis Function

A variety of analysis display includes Current map, Multiple map, Dual case, Difference map, Aberration and CL fitting etc.

• Difference map
• Abberation
• CL fitting
• Ring Edit Function

A ring can be assigned manually if the ring cannot be measured automatically.

Database

Measurement data can be stored and accessible any time.

Scotopic & Photopic Pupil Diameter Measurement

Scotopic measurement
［S.P.S. function］

Photopic measurement
［P.P.S. function］

Both scotopic and photopic measurements are available.

※ S.P.S：Scotopic Pupil Size
P.P.S：Photopic Pupil Size

Wide Screen

10.4 inch wide color screen.
The swivel/tilt function allows the operator to support easily the patient during operation.

Electric Chinrest

It is easy to align the eye position of the patient with the eye mark.
