Description
Specifications

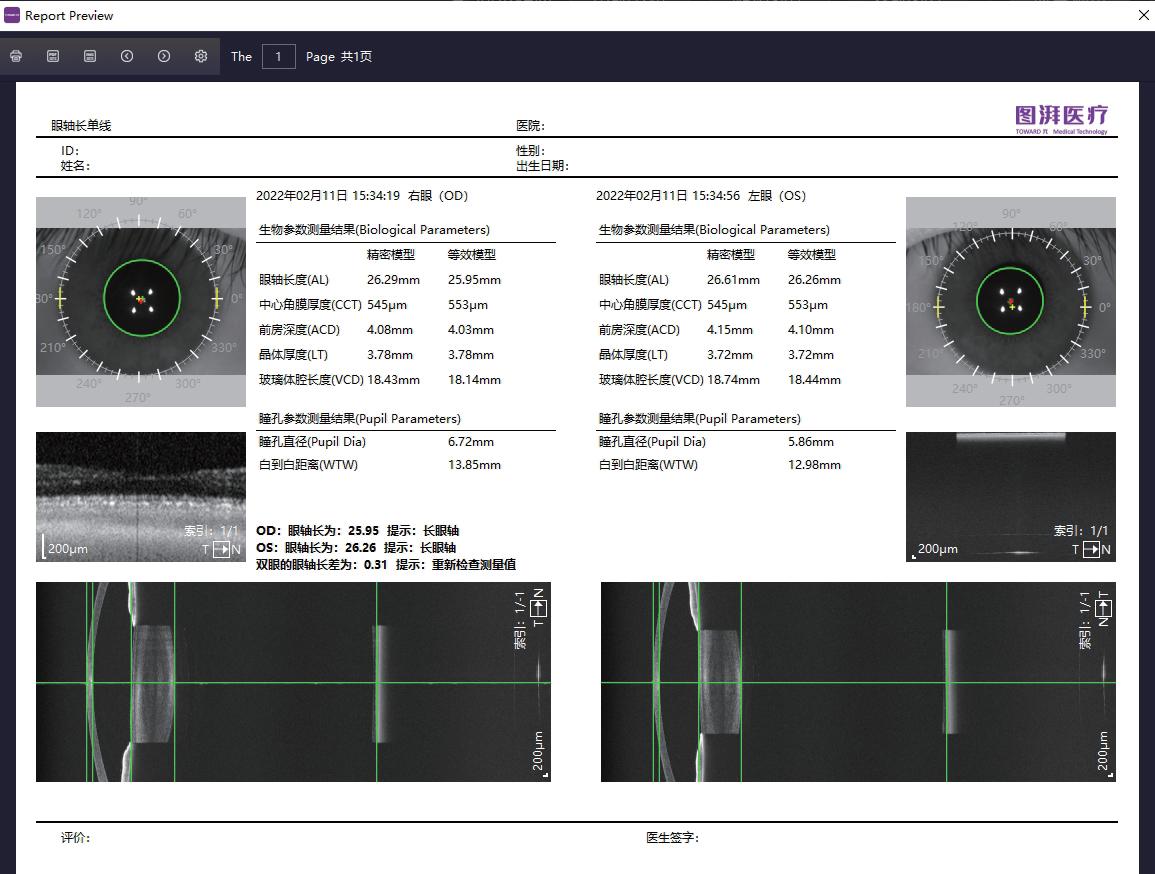

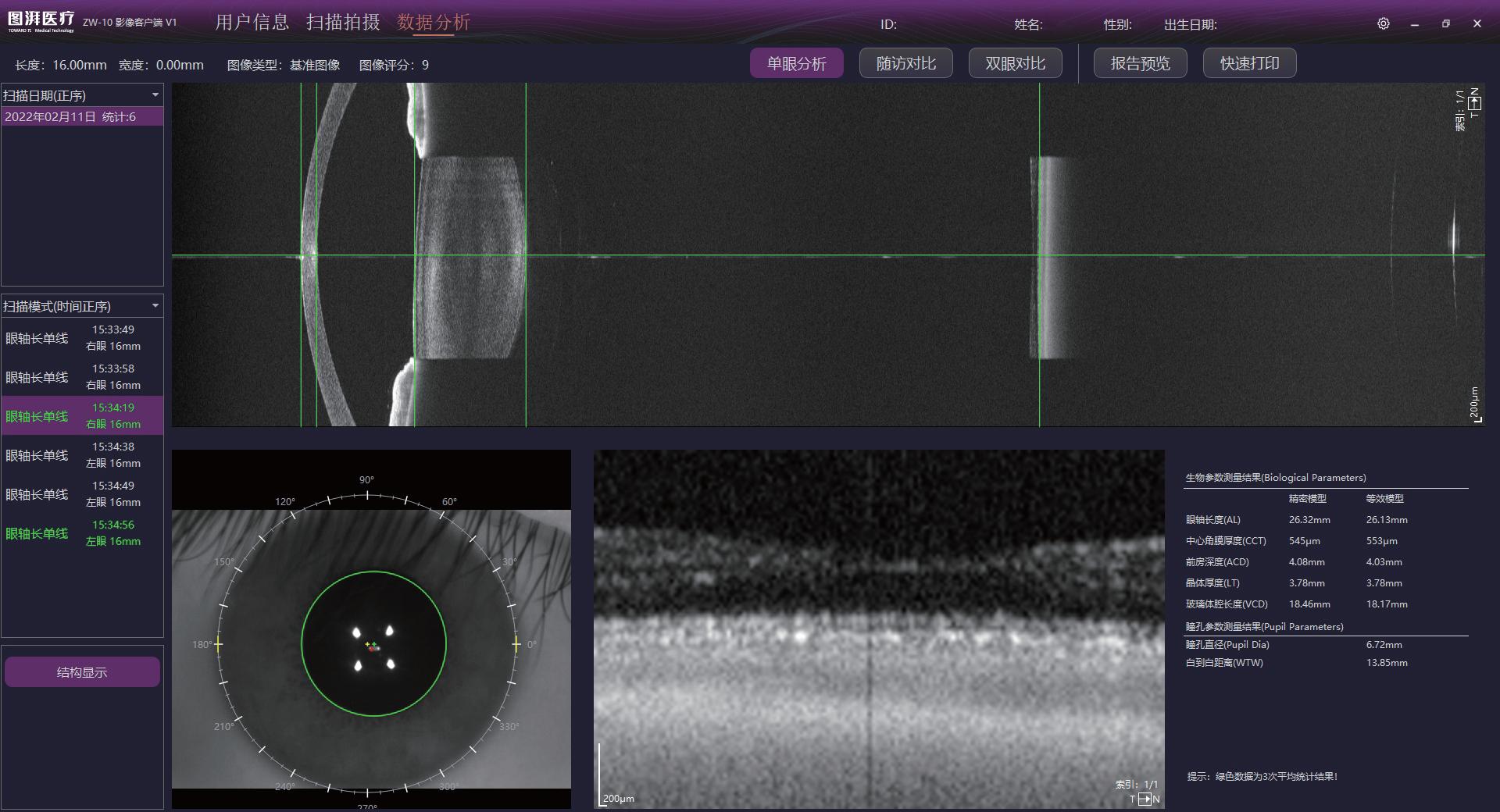

Variety of Measurement Dara available including
- Eye Length
- Anterior Chamber Depth
- Vitreous Cavity Length
- Pupil Diameter
- Central Corneal Thickness
- Crystal Thickness
- Corneal Diameter
Technical Specifications
- Functions: Axial Length, Corneal Thickness, Anterior Chamber Depth, Lens Thickness, Vitreous Cavity
Length, Corneal Diameter, Pupil Diameter, Visual Axis Offset - Shooting Methods: Fully Automatic, Semi-Automatic & Manual
- Measurement Principle: Swept Source Optical Coherence Measurement Technology
- Device Wavelength: 1060nm
- Measurement Ranges
Display Resolution: 0.01mm & 1um
Eye Axis Length: 14-44mm
Central Corneal Thickness: 200-1500pm
Anterior Chamber Depth: 0.7-8mm
Thickness of Fret Body: 0.5-6.5mm
Vitreous Cavity Length: 1mm-42mm
Corneal Diameter: 7-16mm
Pupil Diameter: 2-14mm - Eye Measurement Status: Normal Phakic Eyes, Aphakic Eyes, Artificial Phakic Eyes, Silicone Oil Eyes,
Combination of the above. - Measurement Method: Obtain All Data in One Measurement
- Line voltage: 100 – 240 V ± 10 % (self-sensing)
- Line frequency: 50 – 60 Hz
- Power consumption max.: 150 VA
- Laser class: 1
