ARC VARIO-COMBO

ARC VARIO-COMBO

ARC Laser

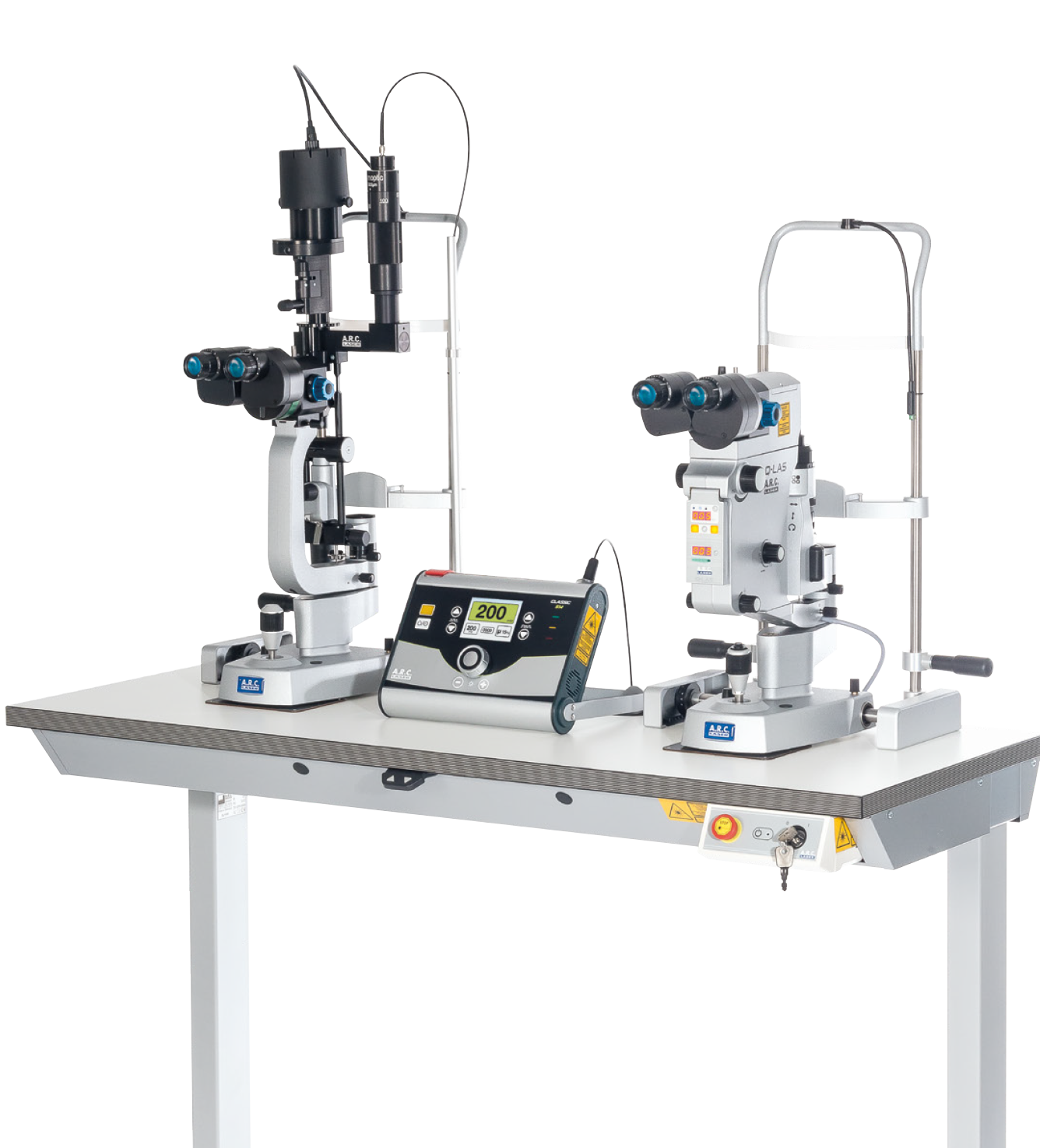

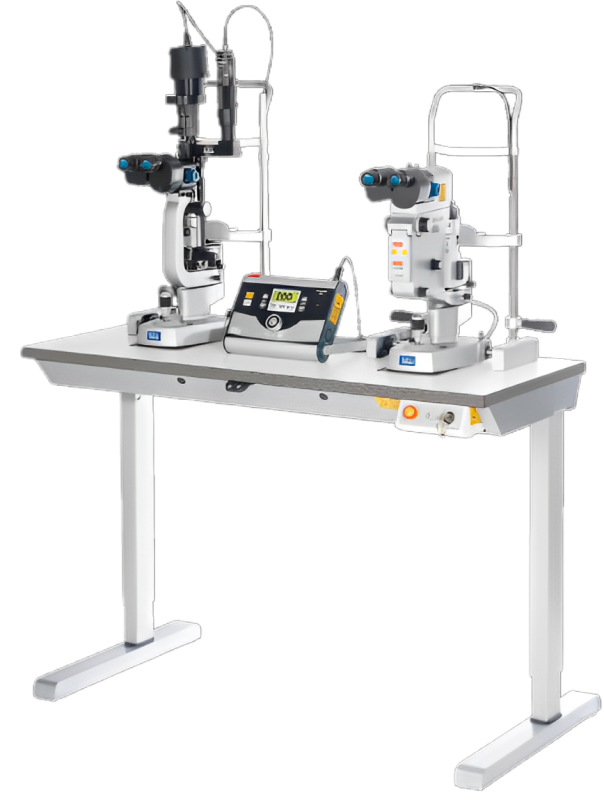

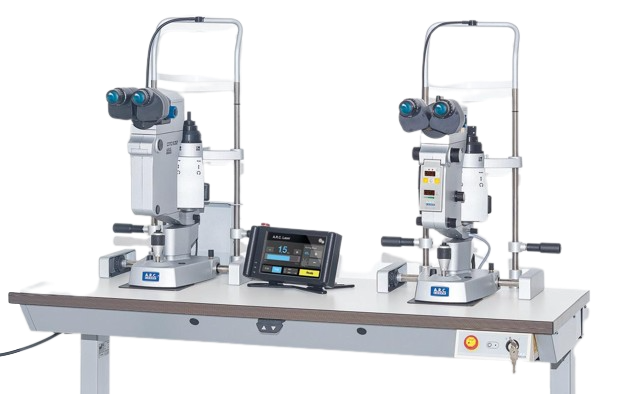

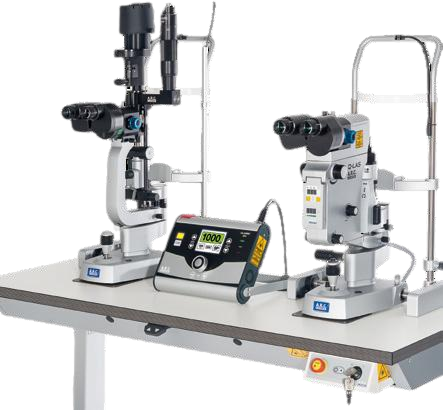

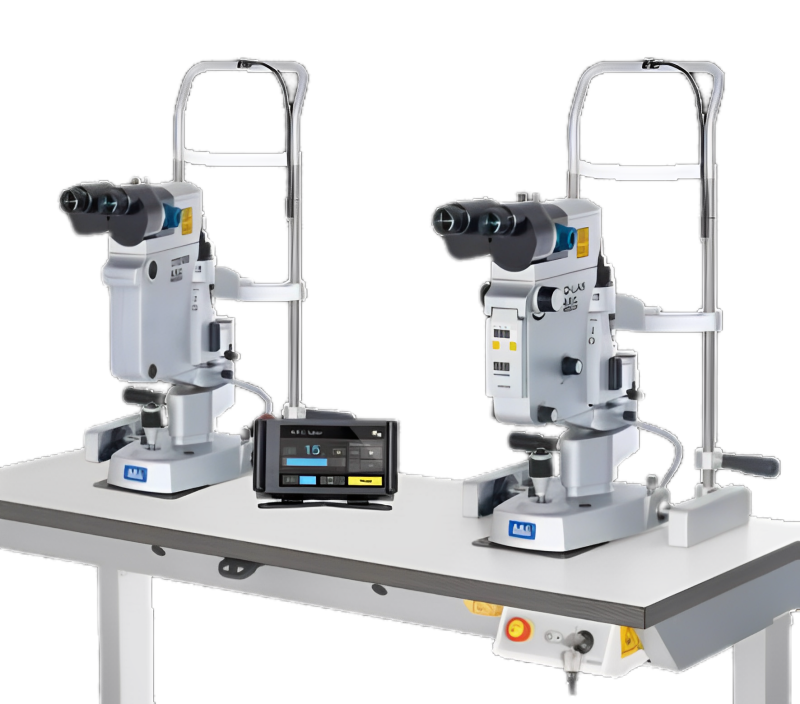

Vario System is the solution when you need a YAG laser, a laser for photocoagulation and a laser to perform SLT.

  • Photocoagulation – CLASSIC 514
  • Capsulotomy and irodotomy – Nd:YAG-Laser Q-LAS
  • SLT Glaucotherapy – CITO 532!

Product Features

  • Designed for the anterior and posterior segment
  • Modern laser systems on one table
  • Optional head-up display
  • Spacious legroom for wheelchair patients
  • Optics that are optimally calculated for your individual application
  • The table width allows full freedom of movement for doctor and patient, including for wheelchair patients
  • Your additional advantage: Two split lamps included

Description

Specifications

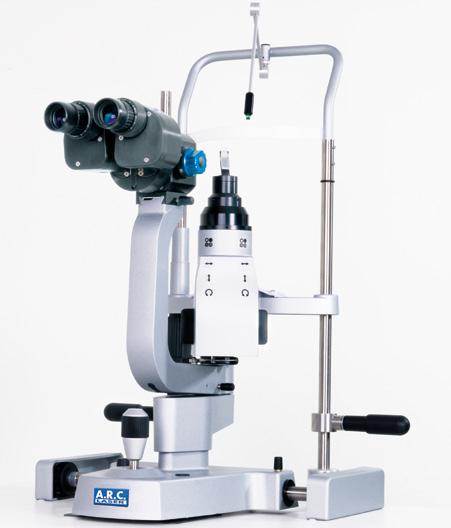

Q-Las
Laser Nd:YAG
Display
Wavelength 1064 nm
Pulse length < 4 ns
Output 0.3 – 10 mJ, continuous
Spot diameter in air < 10 µm
Angle laser beam 16°
Burst Mode 1-2-3 pulses, 20 μs pulse pause
Repetition frequency 2.5 pulses per second
Mode Structure Gaussian
Focus shift 3-stage – 0/125/250 µ – posterior
Aiming beam Red / 2-beam
Fiber coupling
Power supply 230 V, 50 Hz, 3A / 110 V, 6 A
SLT-Laser CITO 532
Laser Q-switched frequency doubled Nd:YAG
Display
Wavelength 532 nm
Output power 0.2 to 2.0 mJ, quasi continuous
Spot size 400 μm in target beam focus
Repetition rate, pulses >10 Hz
Pulse width 3 ns
Aiming beam red 635 nm / 1 mW, adjustable
Doctor protection filters permanent
Laser exit angle 3,2°
Laser transmission Coupling in column lighting
Design Mid-middle with the microscope
Stand area 0.5 m²
Connection values 100 to 240V 50/60 Hz, 600 Watts
Weight 53 kg with slit lamp
Laser class 3b 532 nm, E=2.5 mJ aiming beam: 635 nm, P<5 mW

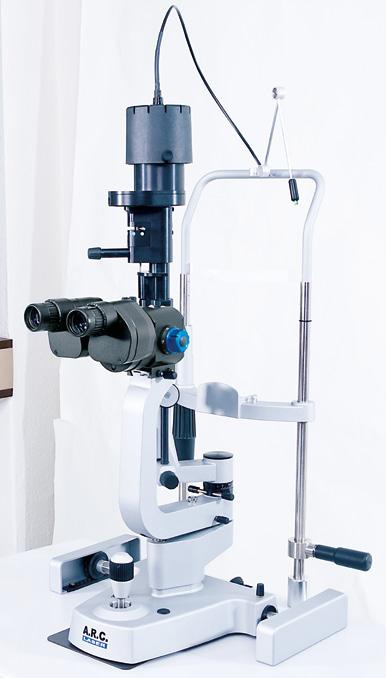

Classic 514nm
Laser Diodelaser
Output power to 1200 mW on the cornea, continuously
Pulse length 1 ms – 2 s, APL selectable: 100 μ-seconds and smaller
Repetition rate 1 to 4 Hz
Aiming beam 635 nm, < 1 mW
Stand area (HWD) 250 x 170 x 220 mm
Weight 3,3 kg – complete
Power supply connection 90 – 230 VAC
Laser outputs 1 fibre coupling
