Description

Performance

• High penetration coating lenses for clearer and more accurate measurements

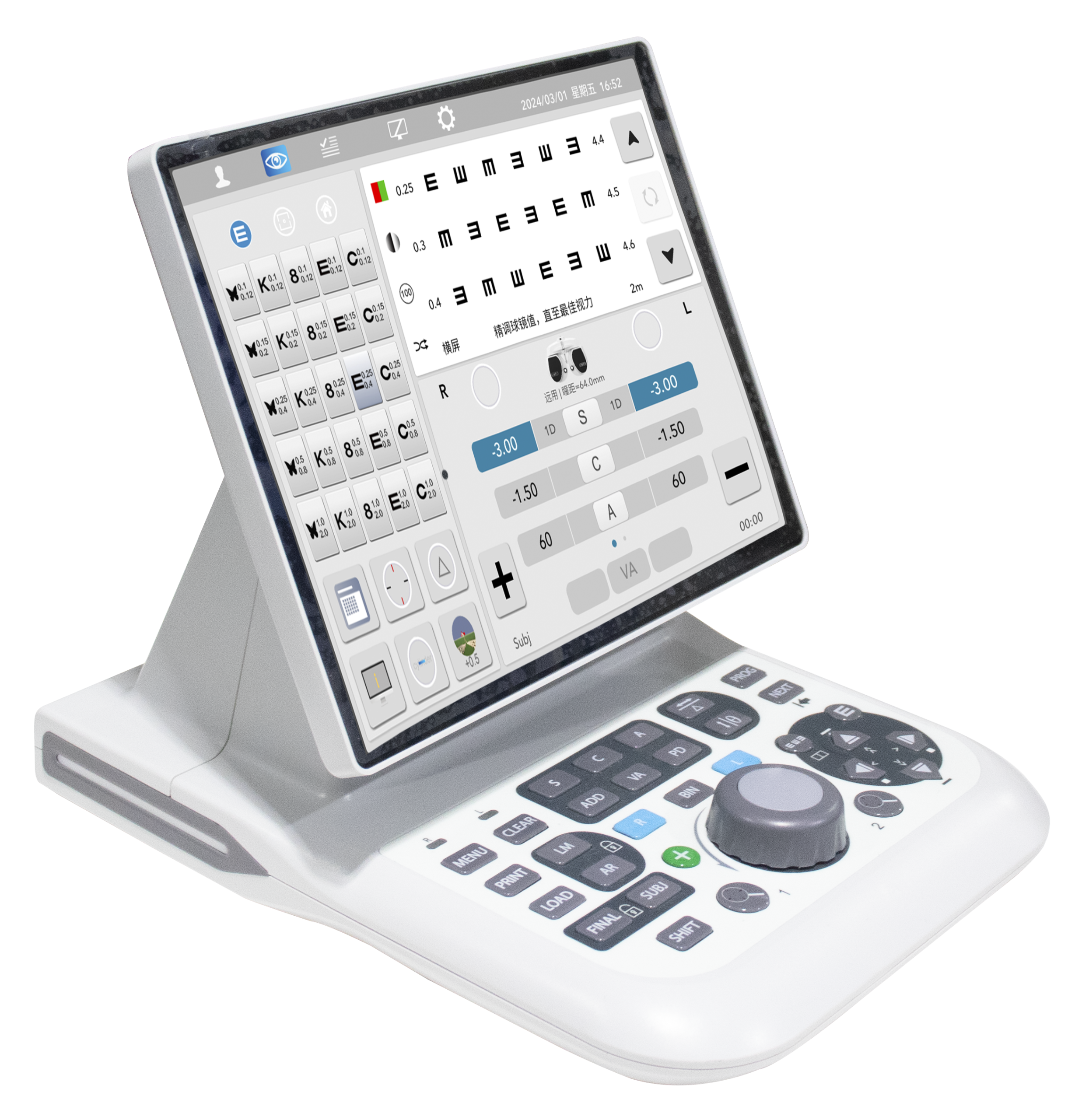

• A near eye chart is built into the console
• The one-click help function makes learning easier for users
• It comes with standard optometry process and can edit and store optometry process to effectively improve work efficiency
• Equipped with auxiliary lenses, can realize a variety of visual function detection

Technical Specifications

Spherical:

• -19.00D ~+ 16.75D
• -31.12D ~ +28.75D (Only FAP-8P)

Step:

• 0.25D/0.5D/1D/3D
• 0.12D/0.25D/0.5D/1D/3D (Only FAP-8P)

Cylinder:

• 0D ~- 7.25D, 0.25D/0.5D/1D steps

Axis position:

• 0°~180°, 1/5°/15° steps

Prism:

• 0~20△, 0.5Δ/1Δ/2Δ steps

Prismbase:

• 0°~360°, 1°/5° steps

PD:

• 48~80mm, 0.5mm steps

The prism base can be selected for horizontal or vertical marking.
