Description

Specification

• Combines technology, simplicity and value
• Compact, modern design
• Intuitive user interface

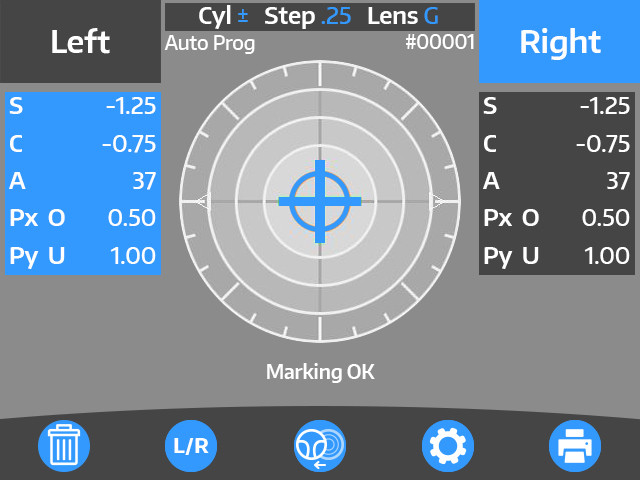

• Brilliant 5.7 inch color LCD display
• Utilizes green measurement light
• Automatically lock-in measurement when optical center is aligned
• Measures single vision, bi-focal/tri-focal, and progressive lenses
• Hard and soft contact lens measurement mode
• Data output options: built-in printer and serial RS-232C port for connecting to EMR/EHR and other devices
• Built-in storage compartment for extra printer paper or accessories
• Measurement range:

Technical Specification

Refractive Measurement Range:
Sphere: -25D to +25D (Step: 0.01D, 0.12D, 0.25D)
Cylinder: 0D to ± 10D (Step: 0.01D, 0.12D, 0.25D)

Measurement Accuracy:
Sphere: 0D to ± 10D = ±0.25D, else 0.50D
Cylinder: ±0.25D

Internal Display: 145 mm (5.7 inches) color LCD monitor

Electrical:
Input Power: 100 to 240V @ 50/60Hz, 60 VA
