Description

Specification

Refractometry

• Measurement range (spherical): -30.00 D to +25.00 D (at VD = 12.0 mm)
• Measurement range (cylindrical): 0 D to ±10.00 D (at VD = 12.0 mm)
• Display unit: 0.12 D/0.25 D
• Measurement range (astigmatism axis): 1° to 180°
• Minimum pupil diameter: Ø 2.0 mm

Keratometry

• Radius of curvature: 5.0 to 13.0 mm
• Display unit: 0.01 mm
• Corneal power: 25.96 to 67.50 D (n = 1.3375)
• Display unit: 0.05/0.12/0.25 D
• Corneal astigmatism: 0.00 to -15.00 D
• Display unit: 0.05/0.12/0.25 D
• Axis: 1 to 180°

Others

• Memory of data: 10 measured values for each right and left eye
• Internal printer: Thermal line printer with auto-cutter function

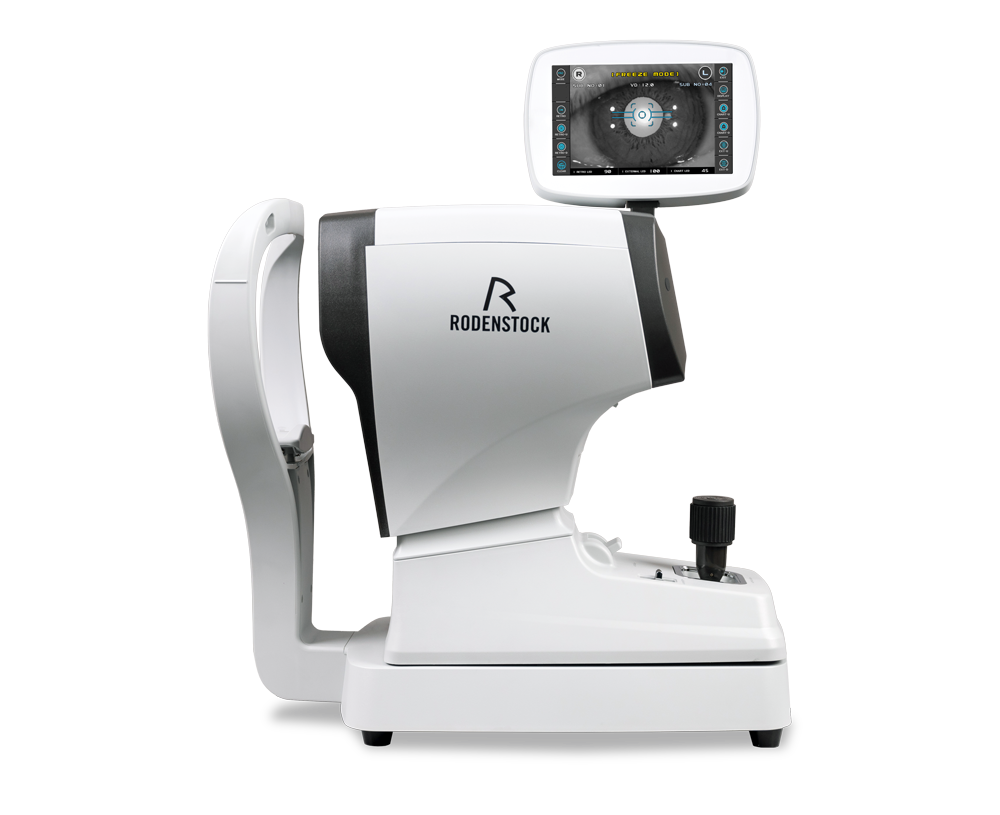

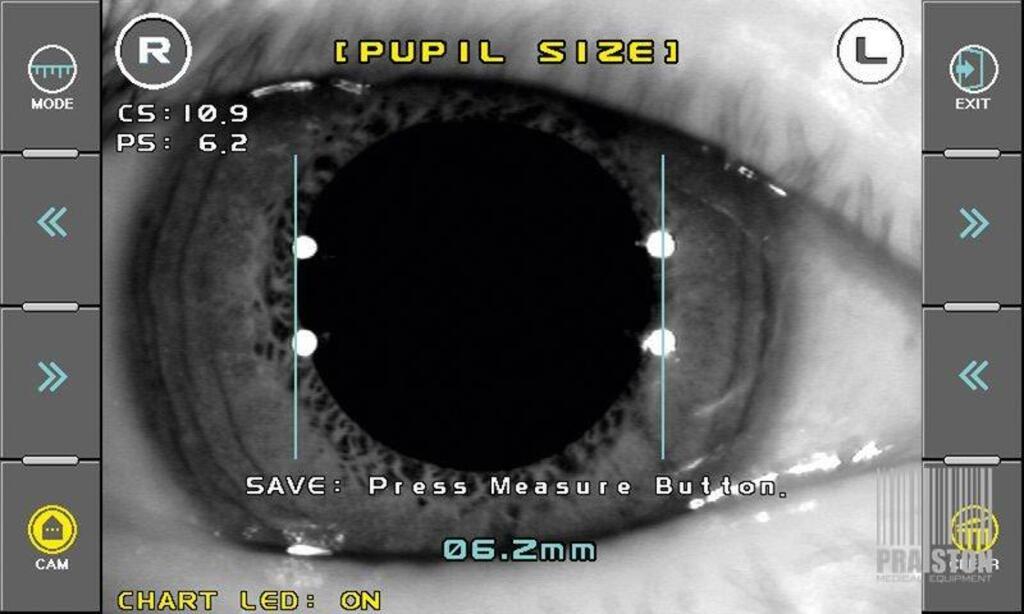

• Monitor: 7″ TFT LCD monitor (800 x 480 pixels, tiltable/swivel)
• Power consumption: 40 VA to 60 VA
