Description

Specification

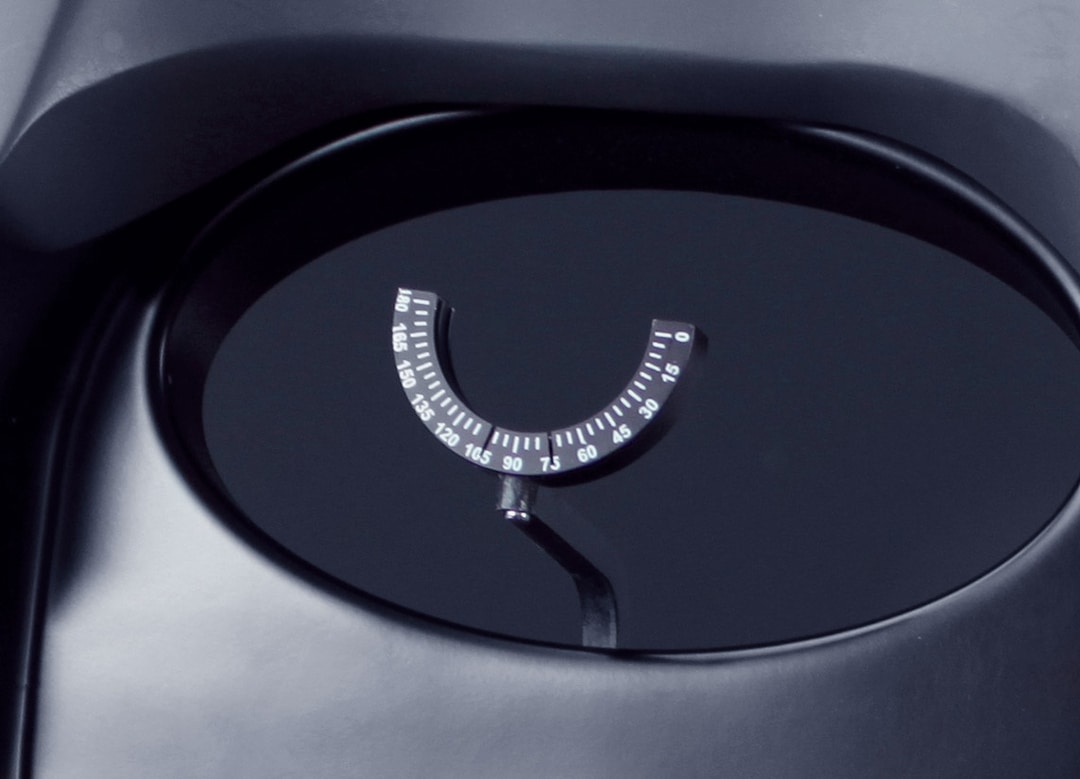

• Stimulus bowl type: Part hemispherical
• Bowl radius: 300 mm
• Eccentricity: 50° horizontal (+30° with moving fixation point), 30° vertical (+10° with moving fixation point)
• Standard test fields: Full, Glaucoma, Central 30˚, Central 22˚, Macula 10˚
• Specialty test: Bi-Driving, Industrial Medicine, Industrial Medicine Extended
• Stimulus source: Rear projection LED
• Stimulus solor: White
• Stimulus size: Goldmann size III (0,43˚)
• Stimulus intensity: 0.01 cd/m² (0.03 asb) to 333,33 cd/m² (1000 asb) in 3dB or 1dB steps
• Background illumination: 32asb (10 cd/m2), automatic level control
• Exposure time: 0.1 to 9.9s adjustable
• Fixation control: Heijl-Krakau (blind spot method) and CCD camera (digital eye tracking)
• Chin rest adjustment: Electrically controlled
• User interface: Multilingual

Dimensions & Electric Requirements

• W/H/D: 548  x 382 x 450 mm
• Weight: Approx. 9 kg
• Input: 115 to 230 VAC
• Frequency: 50/60 Hz
• Power consumption: Max. 60 W
