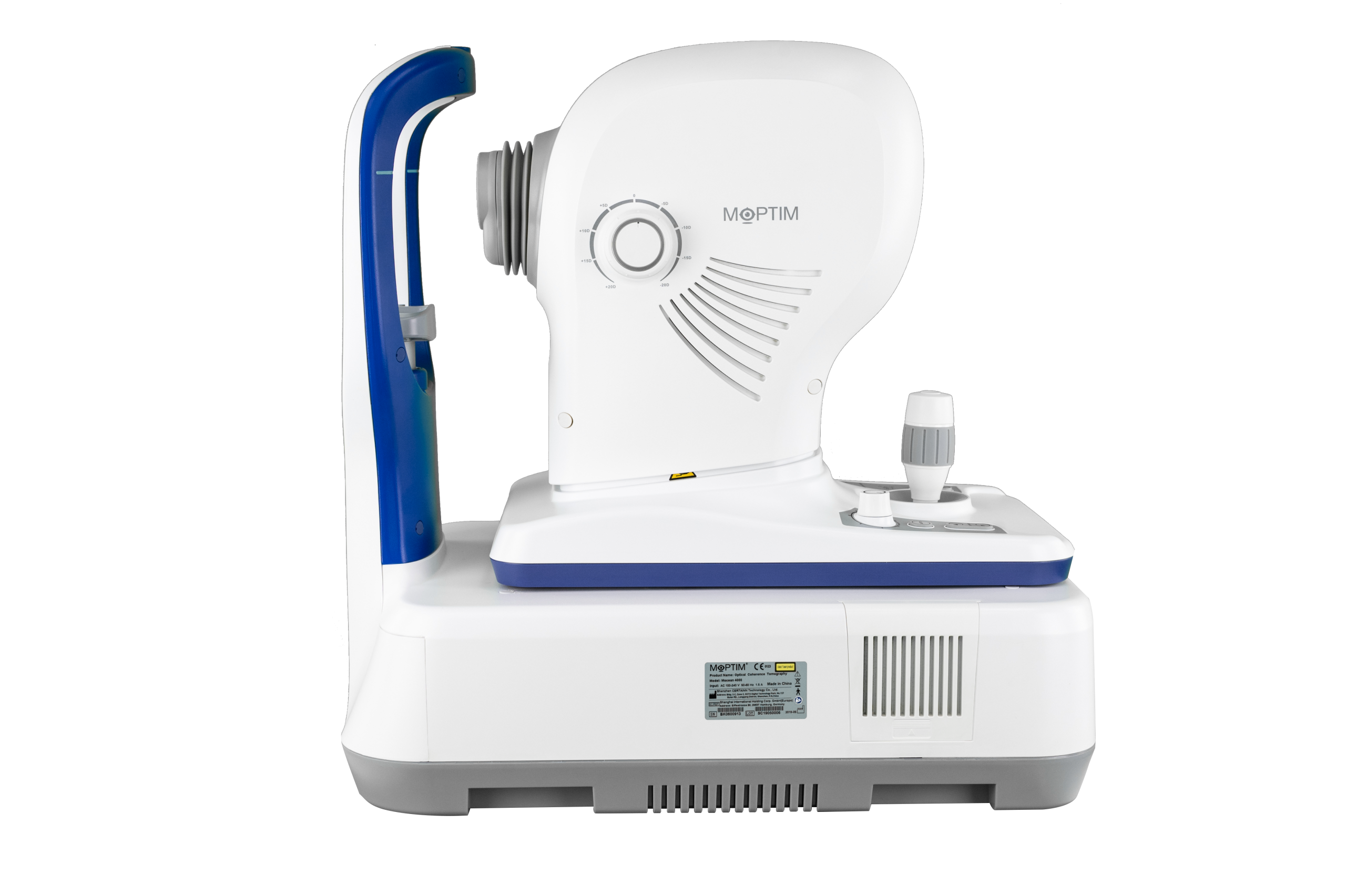

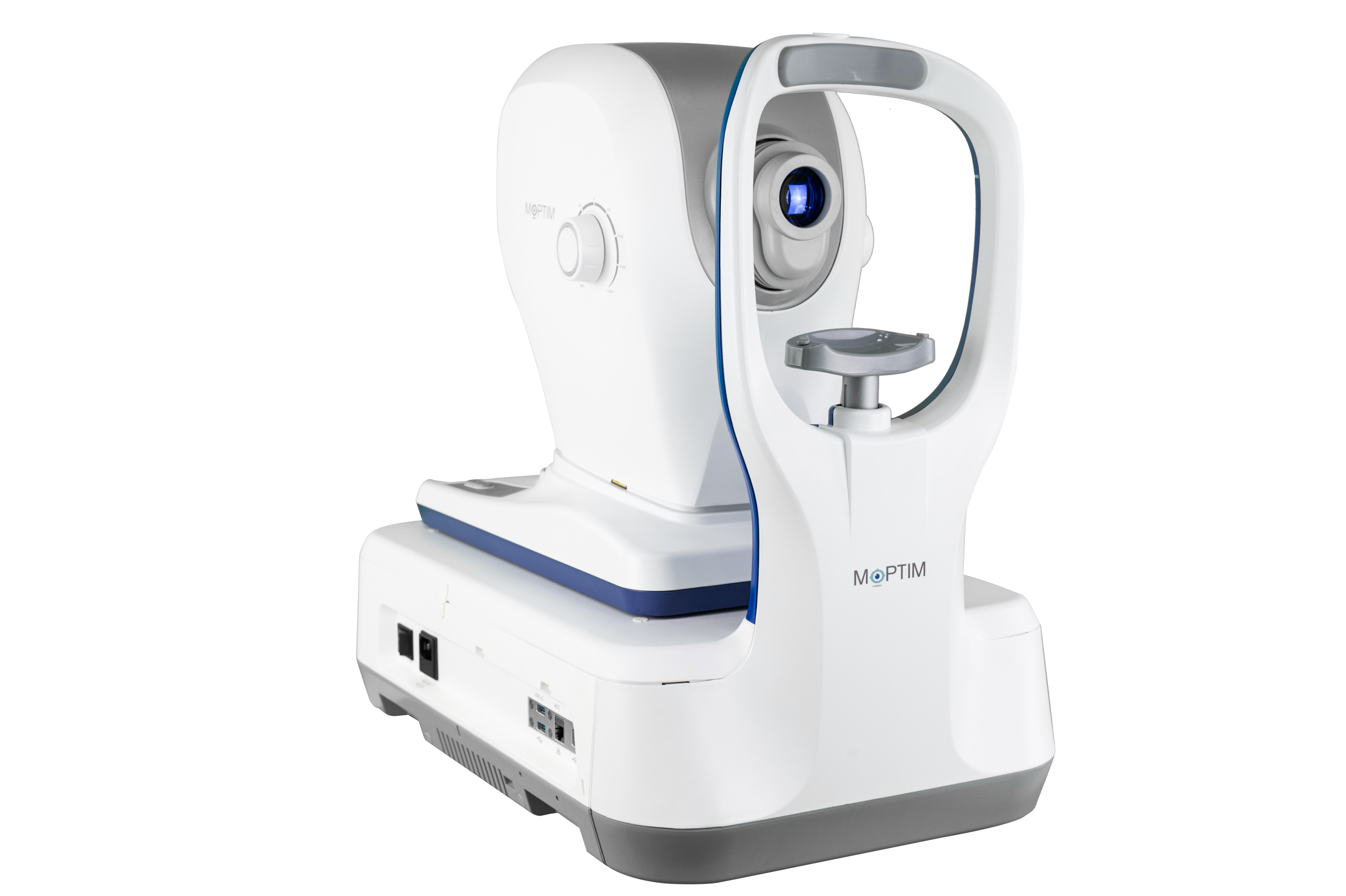

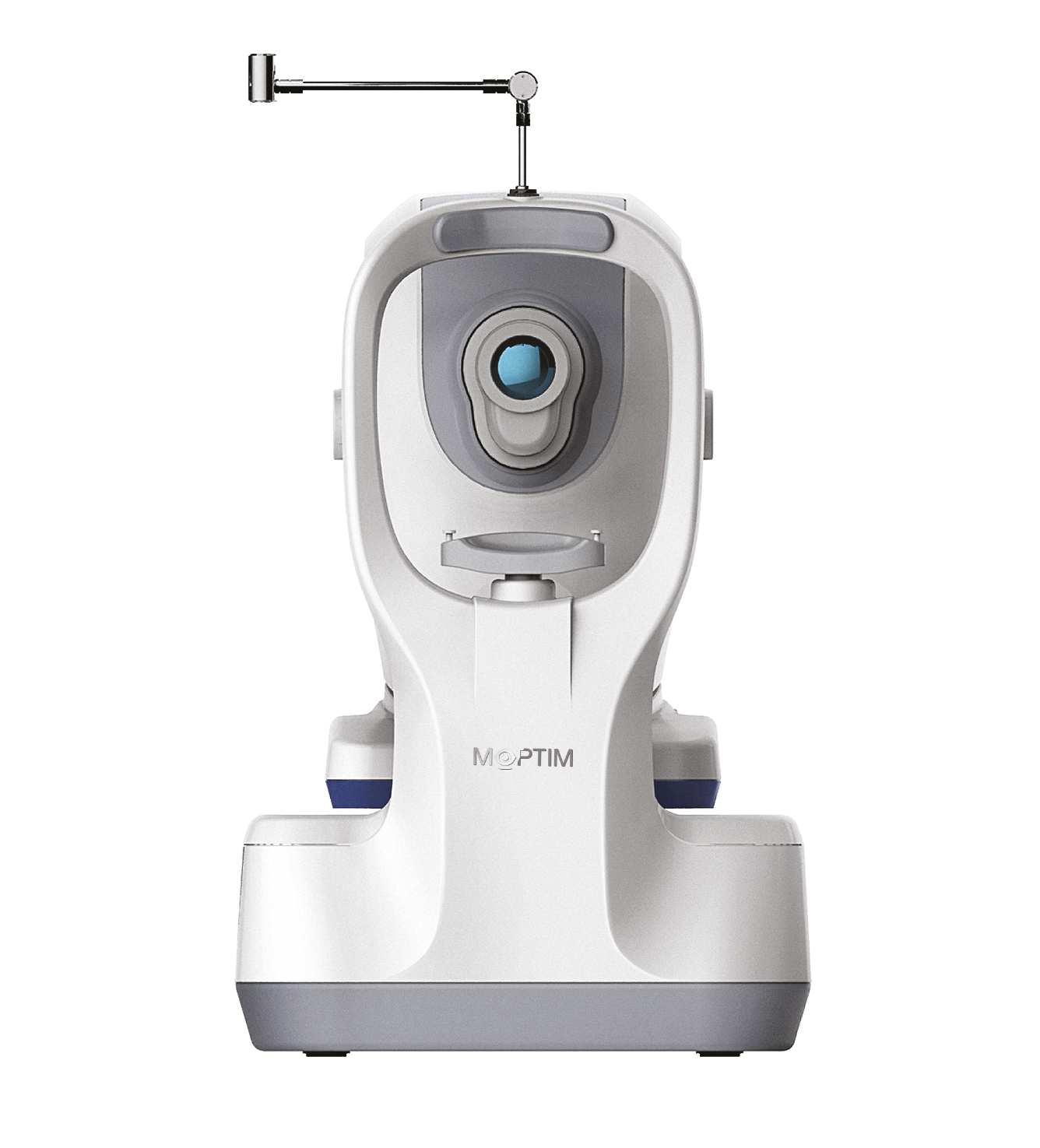

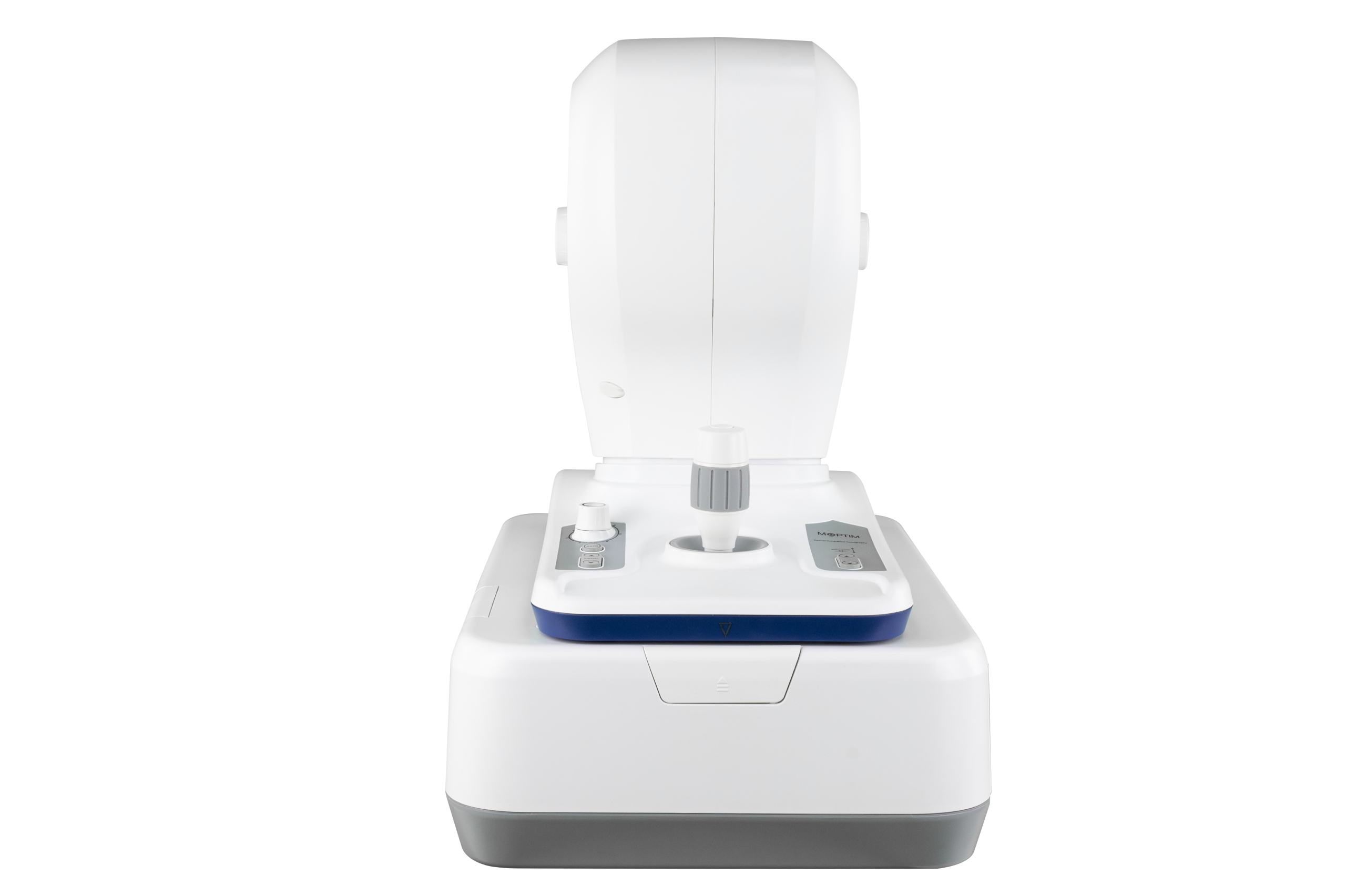

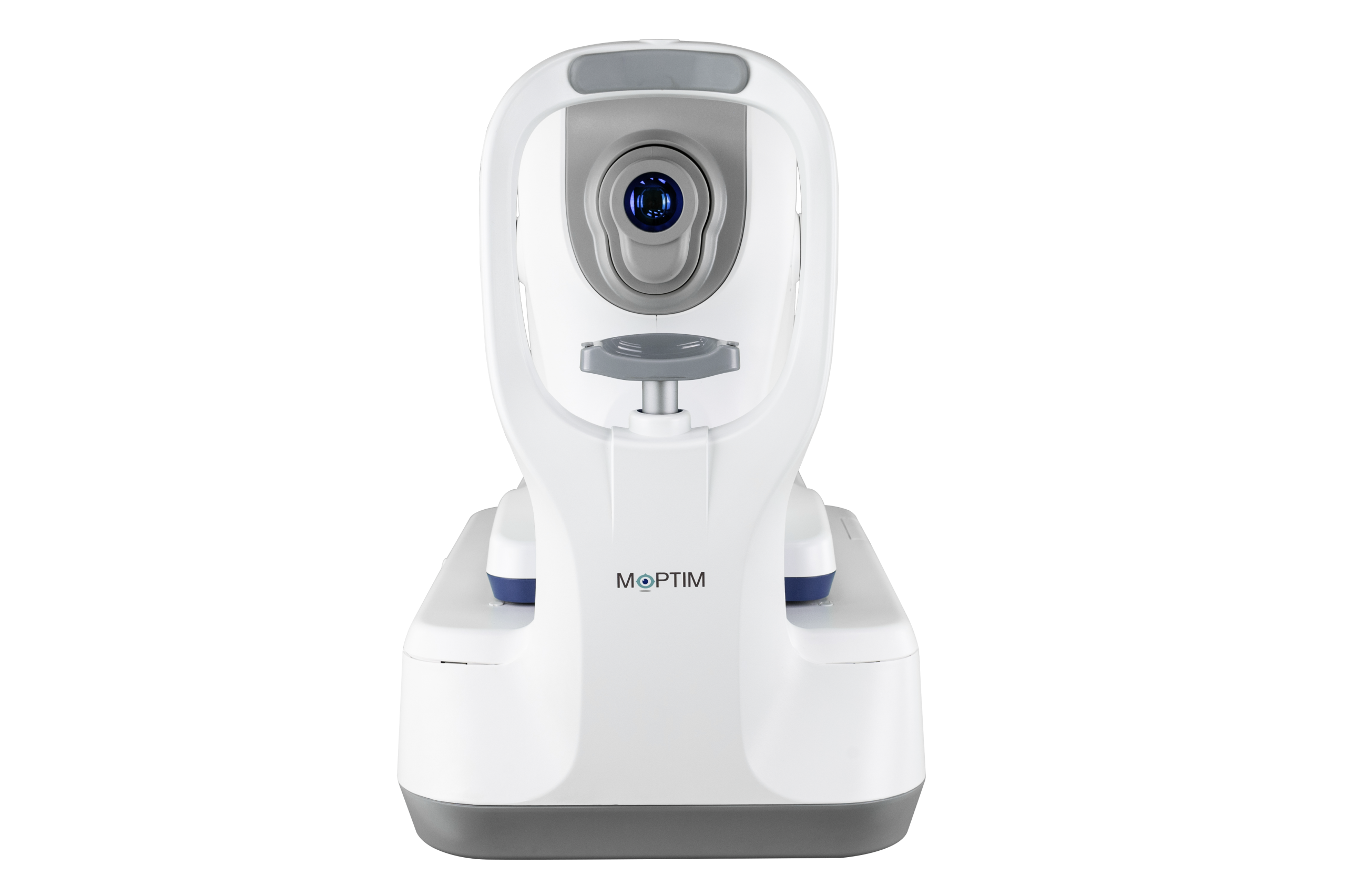

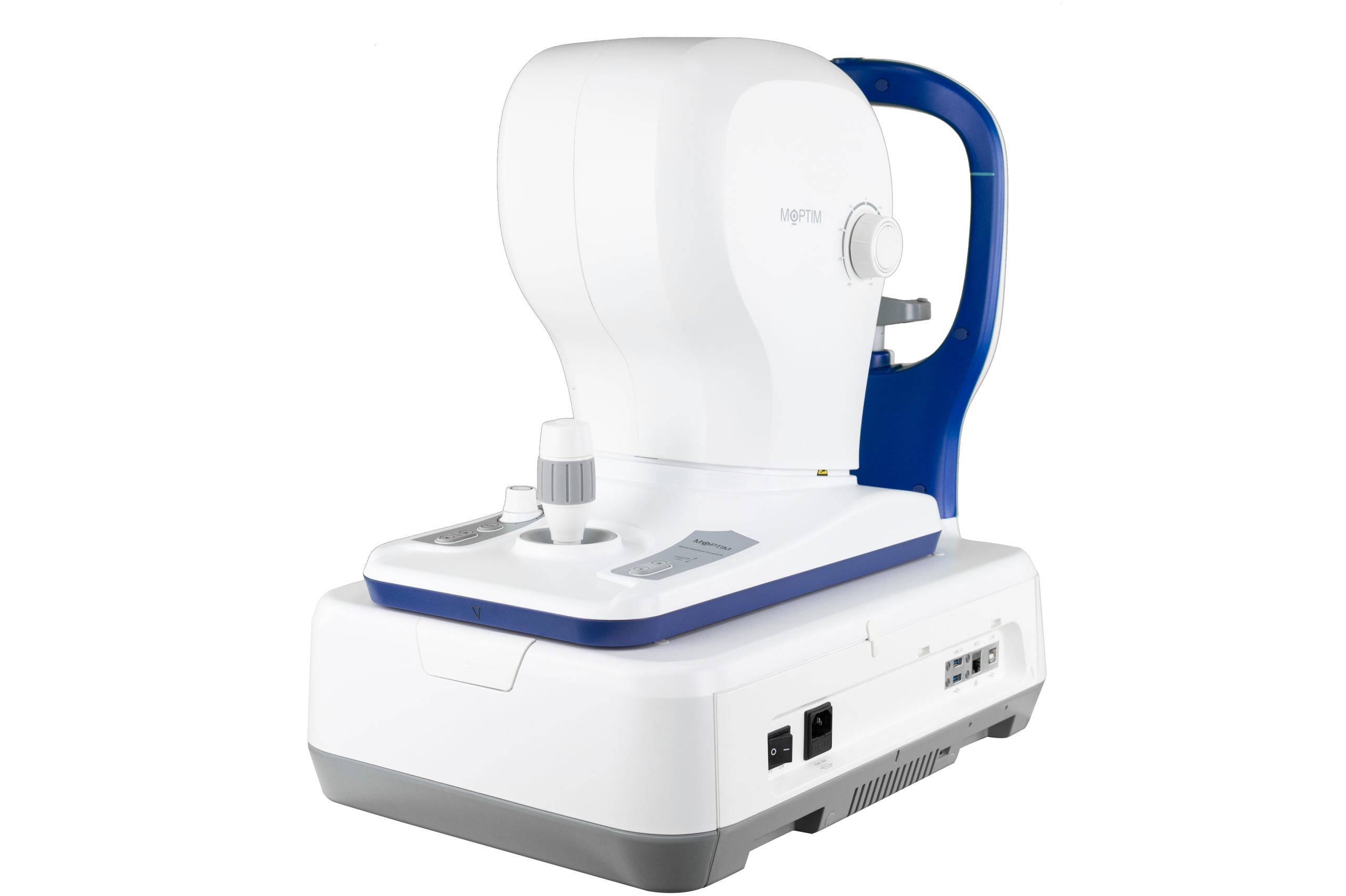

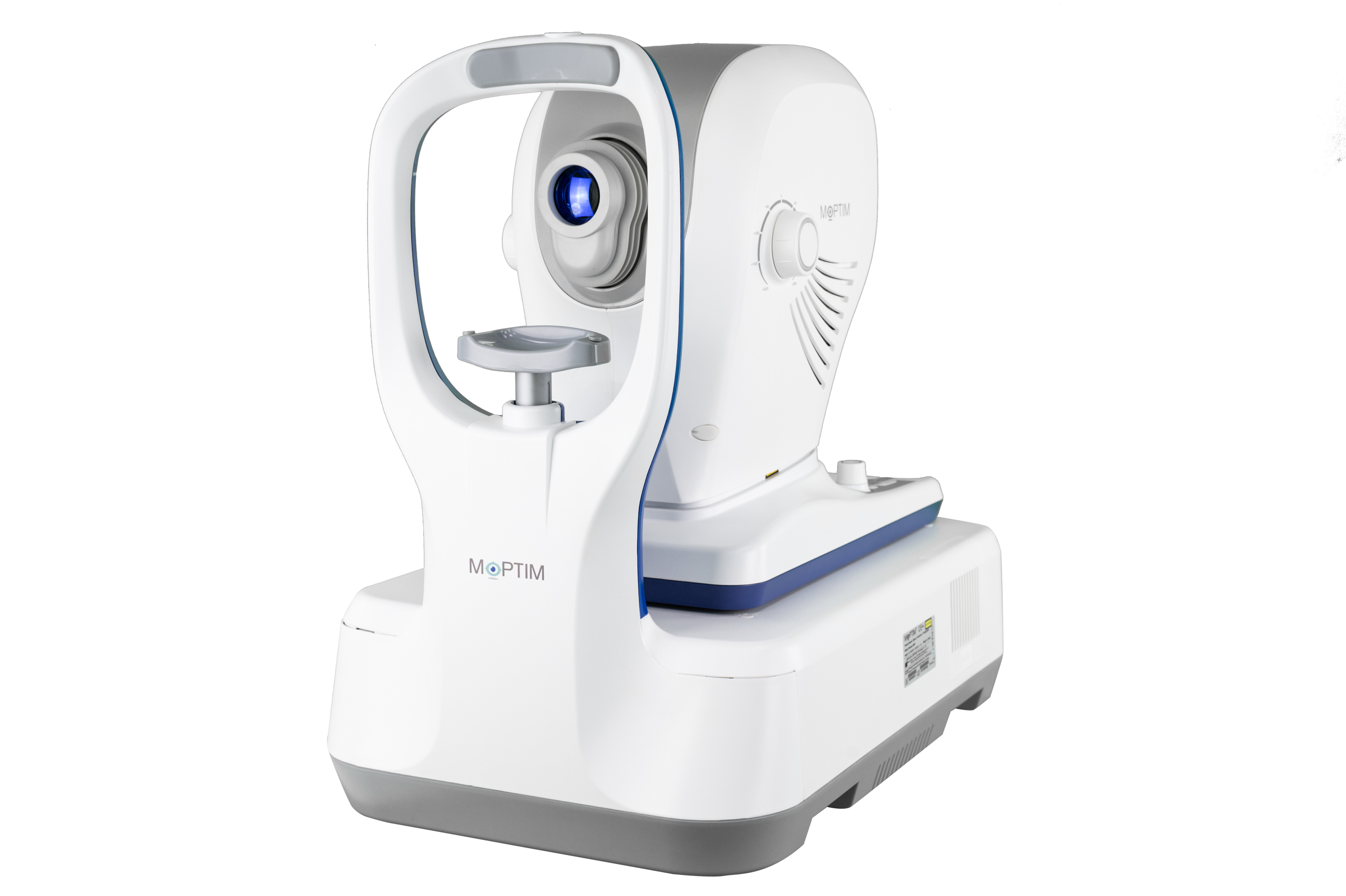

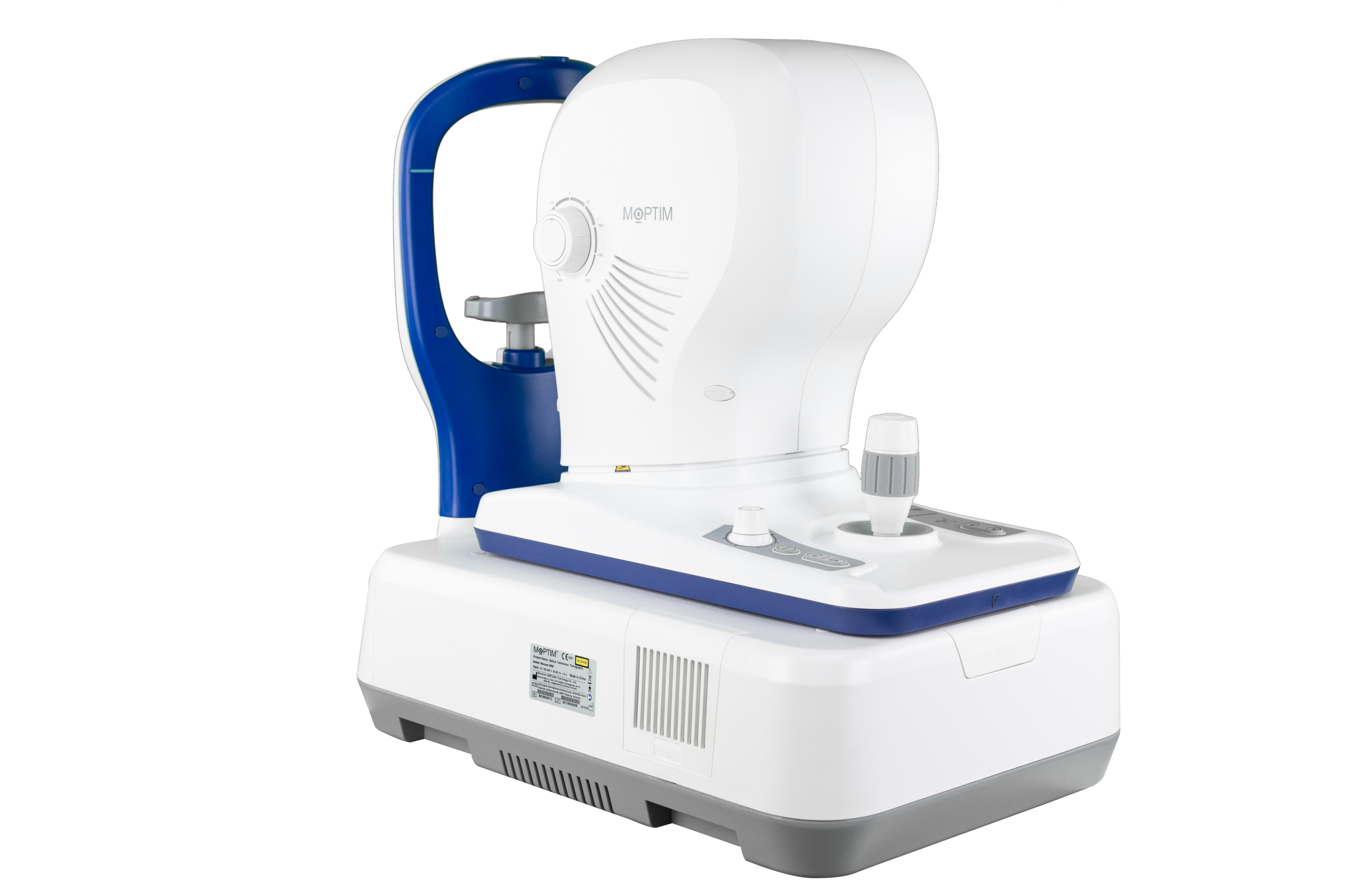

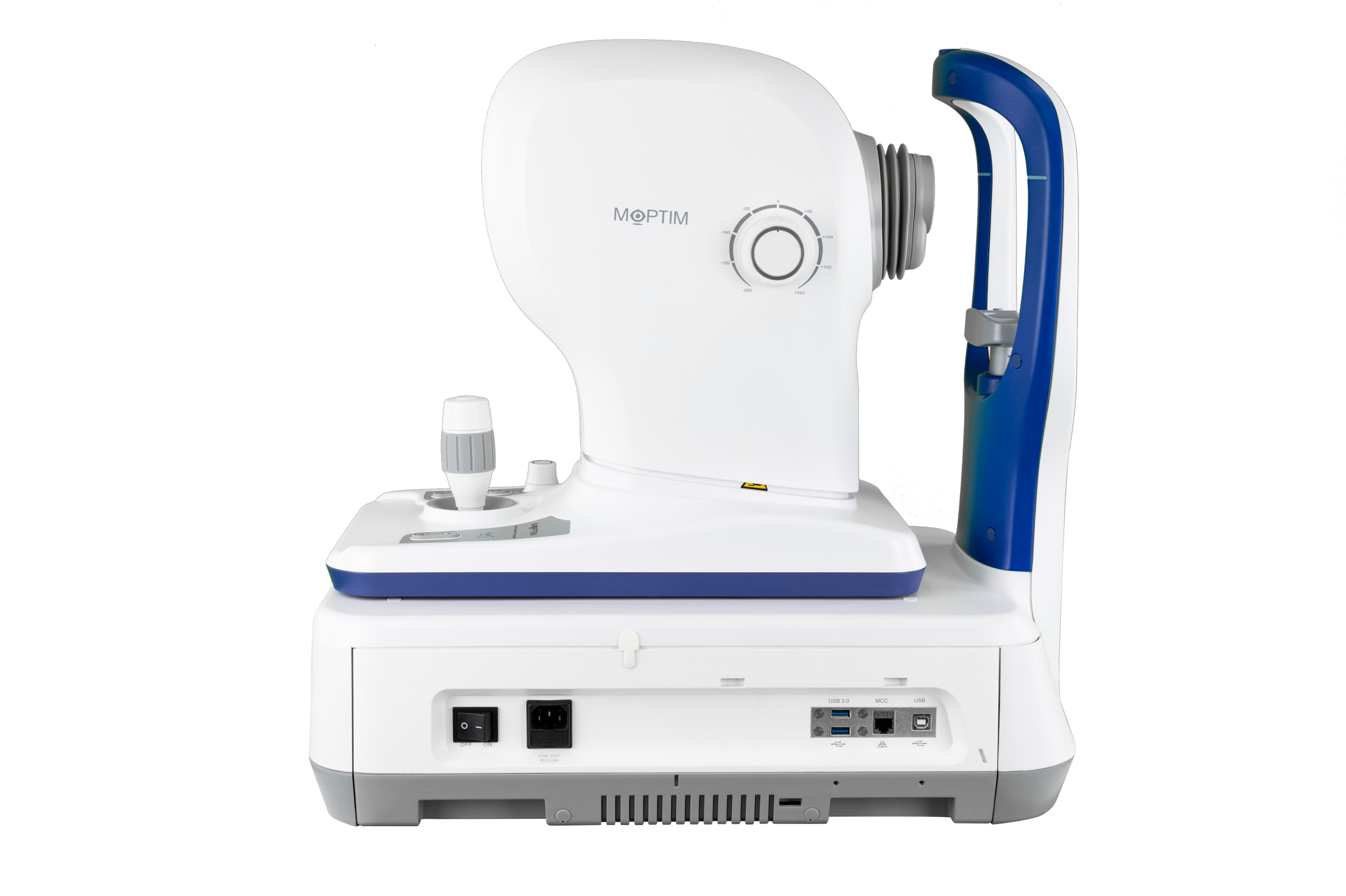

MOPTIM MOCEAN 4000 S-OCT

MOPTIM MOCEAN 4000 S-OCT

Moptim

Mocean 4000 captures 100 images in less than one second, and merge them together to create a high definition image with minimized speckle noise 5 μm axial optical resolution (3 μm digital). High definition OCT imaging reveals hidden pathological changes

Demonstrate Live the user software of the Mocean 4000 LSLO-OCTA

Description

Specification


  • High scanning speed at 80,000 A-scans/s
  • Up to 100 images averaging enhances the quality of OCT imaging
  • 3mm scan depth shows better details of the vitreous, retina and choroid
  • Real-time 47° SLO retinal imaging
  • SLO-based retinal tracking
  • 16mm angle-to-angle scan
  • Comprehensive analysis of retina, glaucoma and cornea
  • Upgrade to VASCAN OCTA analysis (optional)

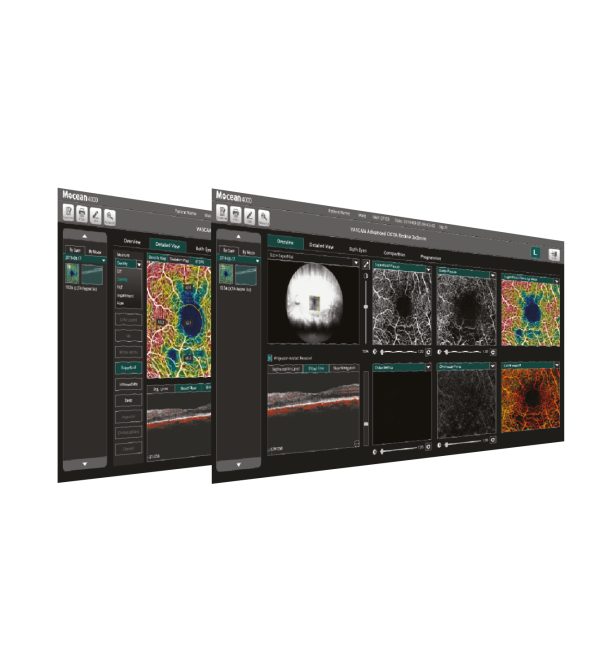

VASCAN ADVANCE ANGIO MODULE

Scan Area

    • Retina: 3 mm x 3 mm  (256 x 256)  –  6 mm x 6 mm  (512 x 512)  –  8 mm x 8 mm  (512 x 512)  –  12 mm x 8 mm  (540 x 360)
    • Disc: 4.5 mm x 4.5 mm (512 x 512)  –  6 mm x 6 mm  (512 x 512)

Quantitative Analysis

    • Density / FAZ / Impairment / Flow Analysis
