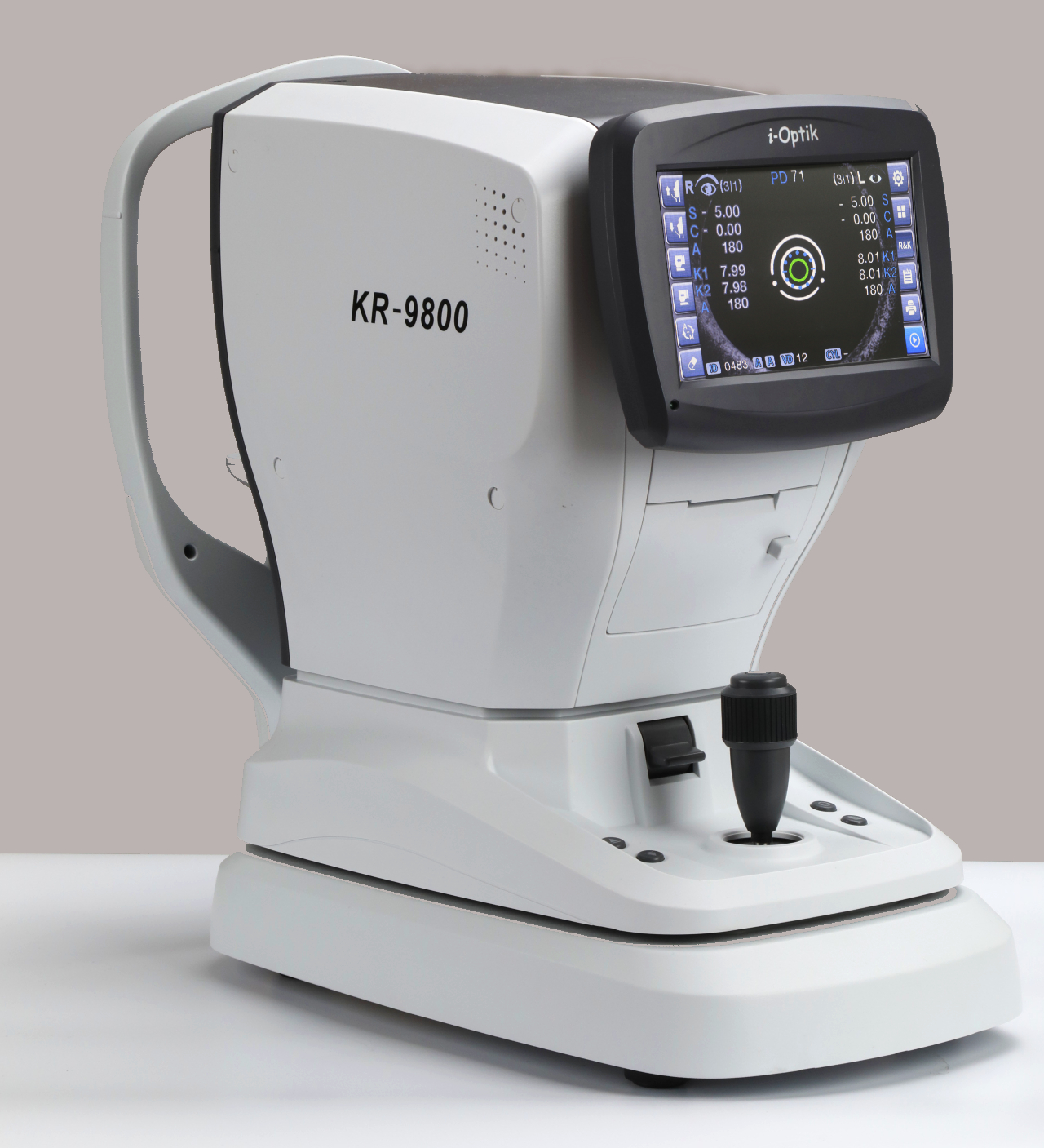

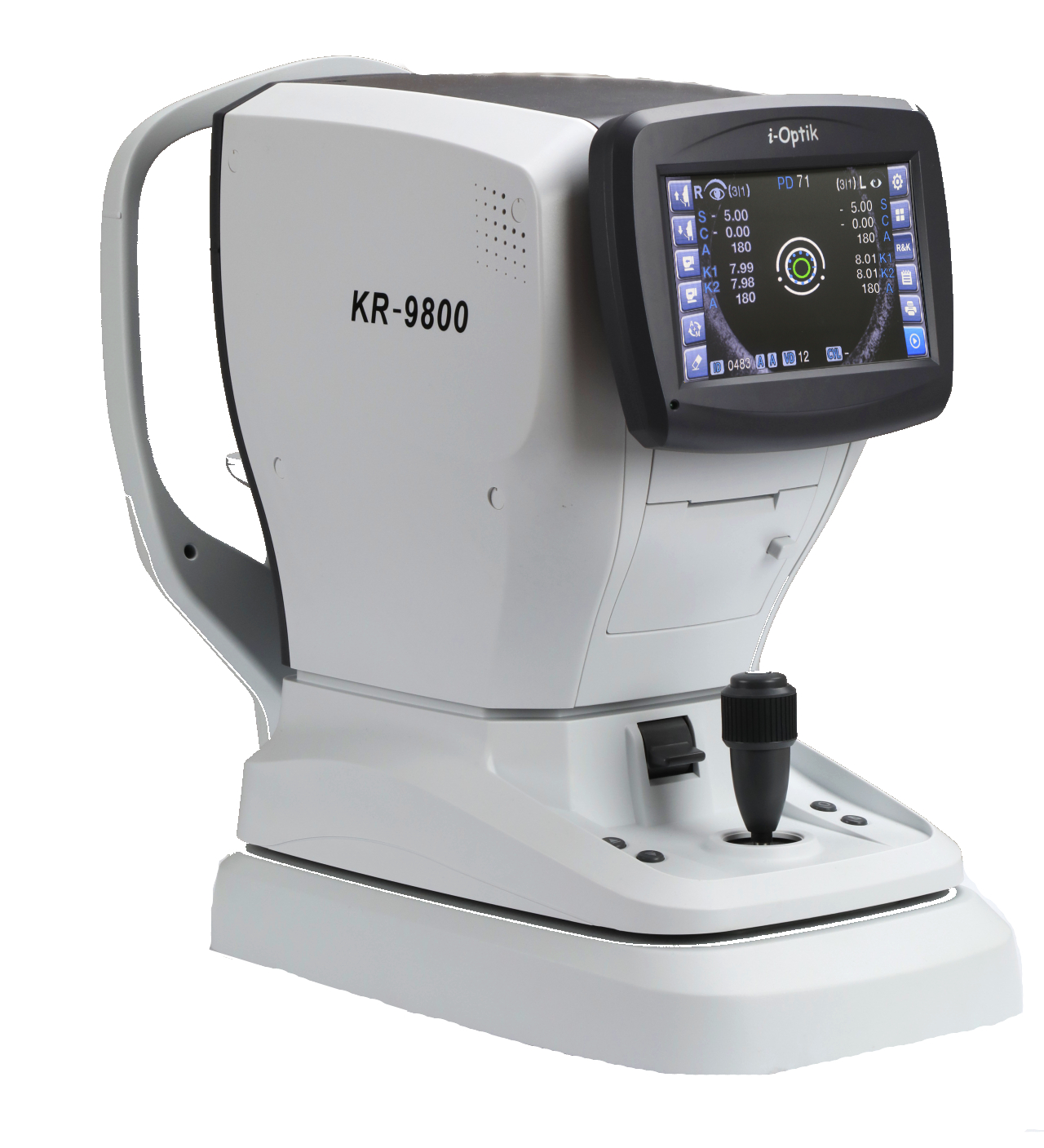

I-OPTIK KR-9800

I-OPTIK KR-9800

i-Optik

The KR 9800 is an advanced auto  ref- keratometer for measuring refraction with integrated analysis so that we have a reliable measurement and data optimization. It has the ability to automatically identify the best location for measuring keratometry to avoid error from handling and improve measurement accuracy. It has an intraocular lens (IOL) measurement function.


Features

  • 7.0-inch touch screen, with adjustable angle of 90 degrees
  • Pupil measurement function

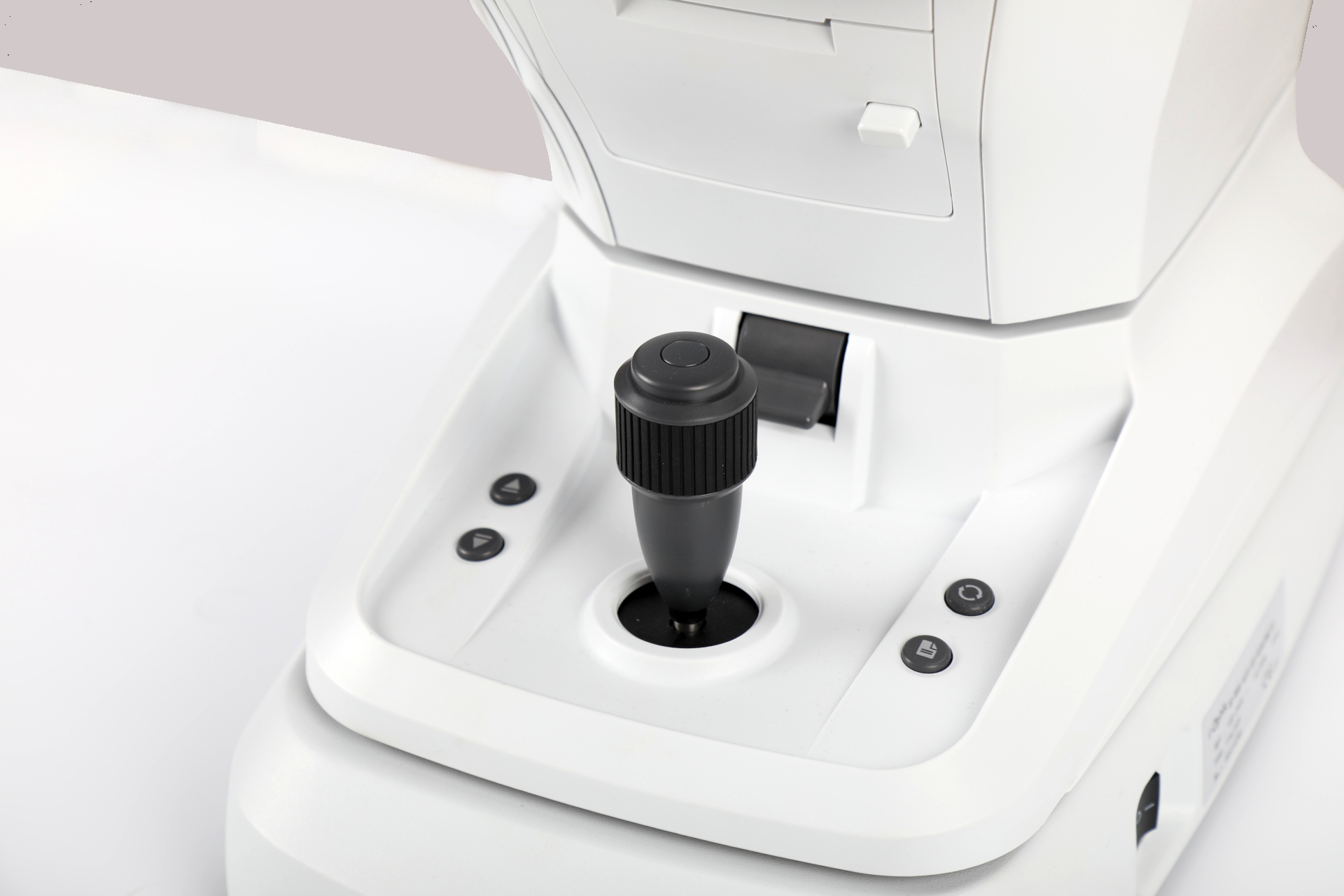

  •  One touch lock
  •  Fast & User-Friendly operation

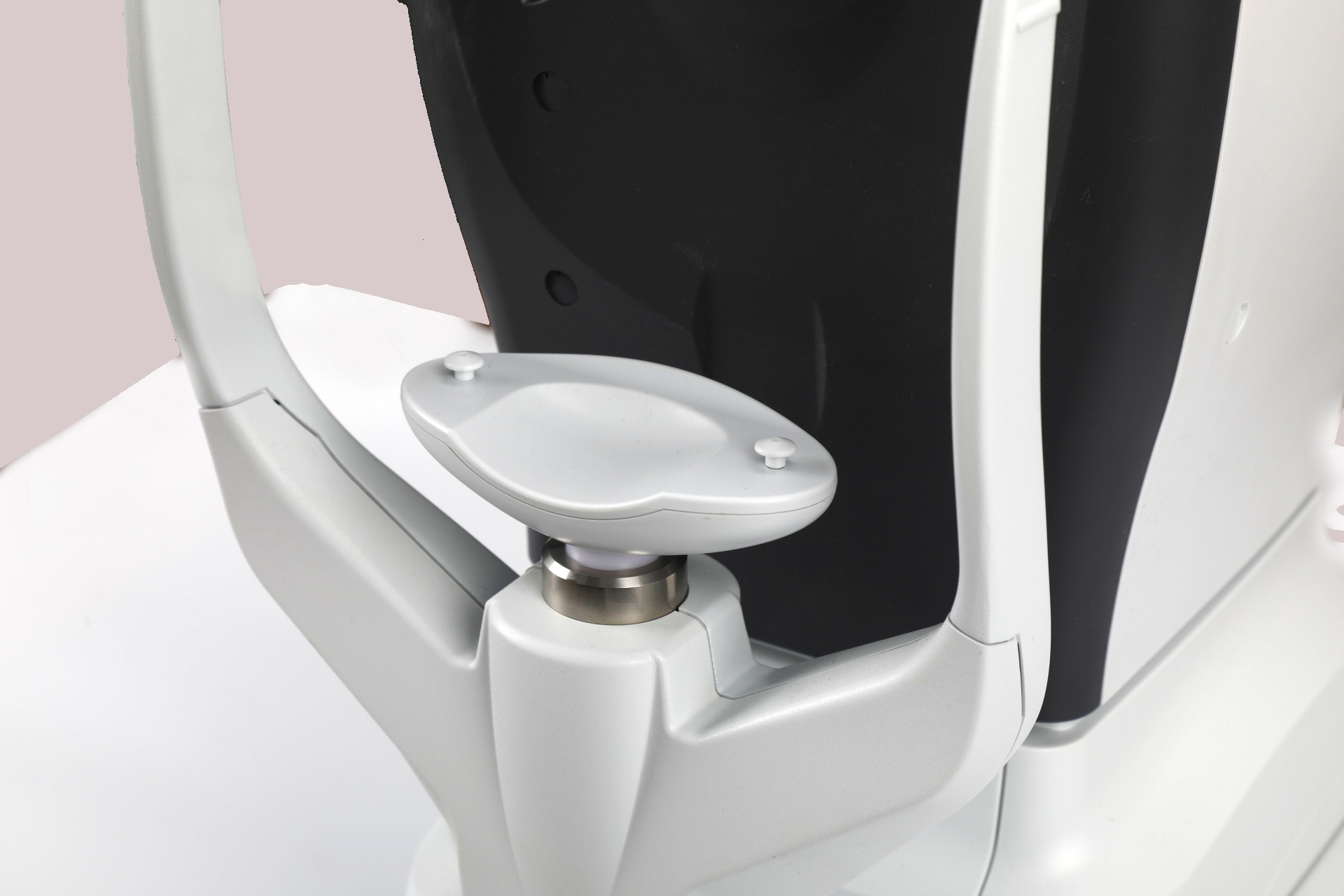

  •  Motorized chin rest
  •  Auto tracking function
  •  Retro Illumination

Description

Specification


Refractive Measurements

  • Vertex distance: 0.0 mm, 12.0 mm, 13.75 mm, 15.0 mm
  • Sphere: -25.00 ~ +22.00D (0.12/0.25D step)(VD=12mm)
  • Cylinder: 0.00 ~ ±10.00D (0.12/0.25D step)
  • Axis: 0° ~ 180°(1° step)
  • Pupil distance: 10 ~ 85mm
  • Minimum pupil diameter: Φ2.0mm
  • Target: Automatic fogging target

Keratometric Measurements

  • Radius of curvature: 5 ~ 10mm (0.01mm step)
  • Refractive power: 33.75D ~ 67.50D (0.12 / 0.25D step)
  • Rolling power: 0.00 ~ 15.00D (step 0.12 / 0.25D)
  • Axis: 0 ° ~ 180 ° (1 ° step)
  • Cornea diameter: 2.0 ~ 12.00 mm

Additional information

Brand

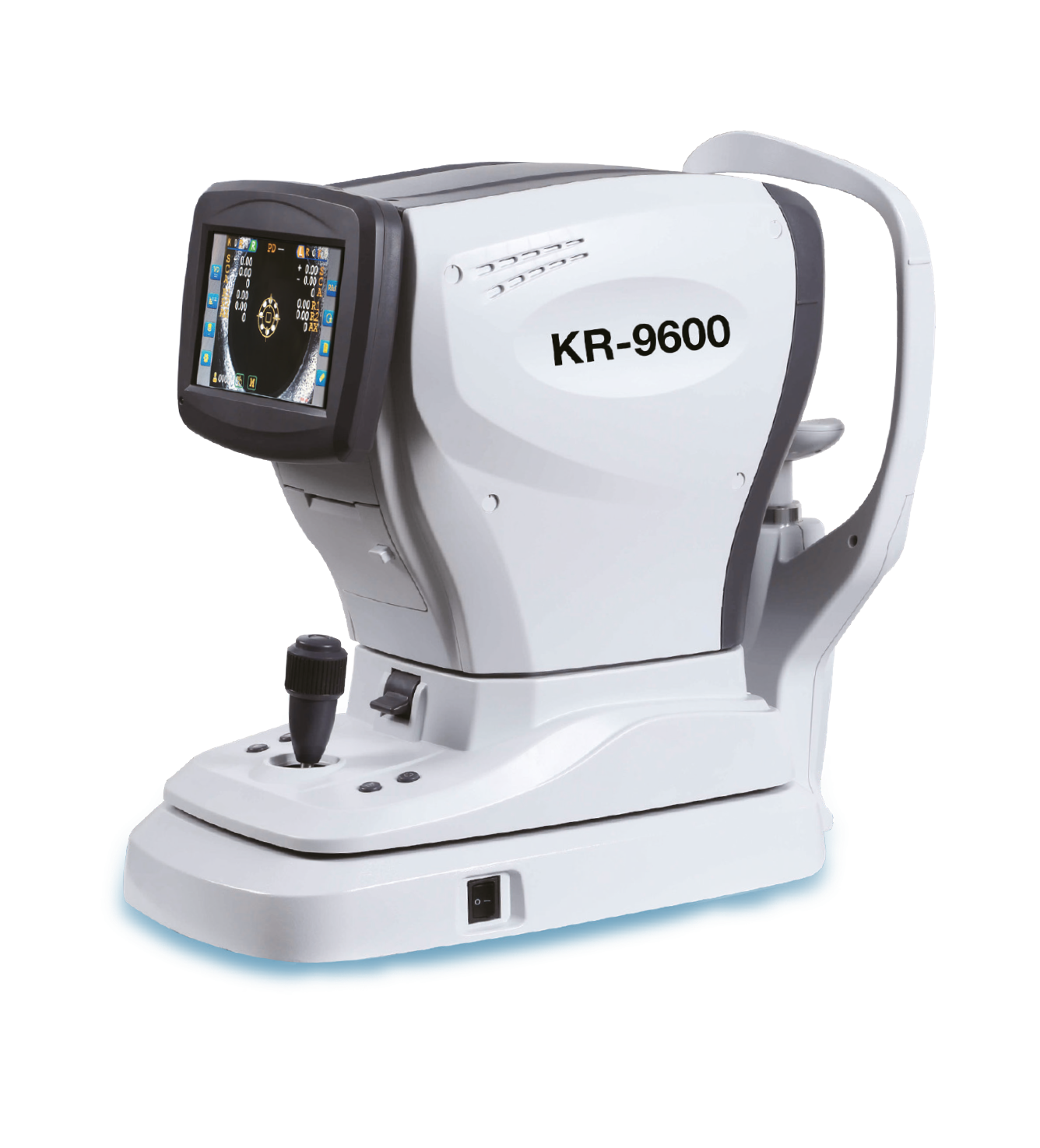

iOptik KR 9600 KARTELA 3

Download

Opto Hellas_RM9800 KR 9800 ioptik 3

Download
