Description
Specifications

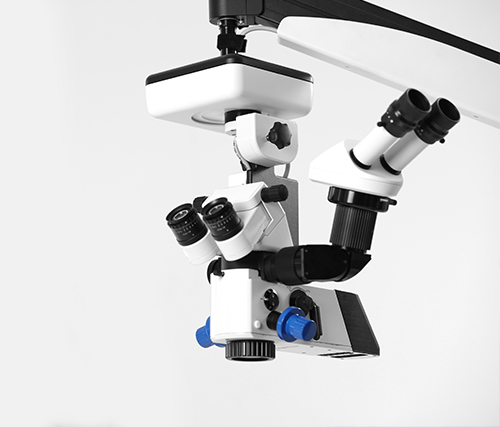

Magnification changer: 6.3:1 zoom, motorized, Apochromatic 5-step-changer
Objective: WD=200mm, APO

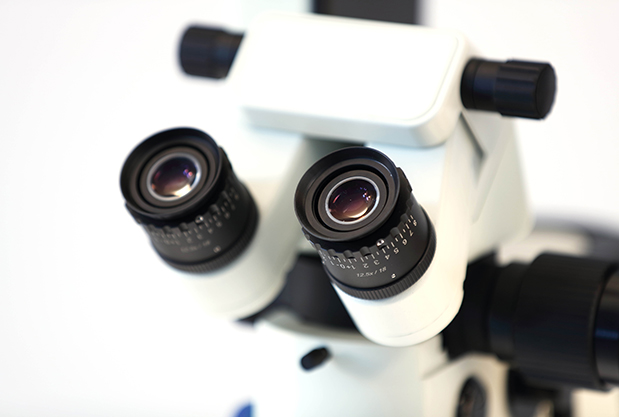

Eyepiece:
- 10× wide-field eyepieces for eye-glasses wearers
- Diopter adjustment +/– 5 with adjustable eyecup
X-Y unit:
- X-Y unit moving by electric, adjustable speed
- 40×40mm，with reset function
Focusing: Motorized, 40mm, adjustable speed, reset function
LED-illumination
- Coaxial, integrated Red Reflex illumination
- Adjustment of light intensity
- Long-lasting LED-illumination free of UV and IR
- 2 free openings for selectable filters
Pitch adjustment: Inclining mechanism +/– 15° manual fine adjustment
Foot switch: 8-function foot switch, waterproof

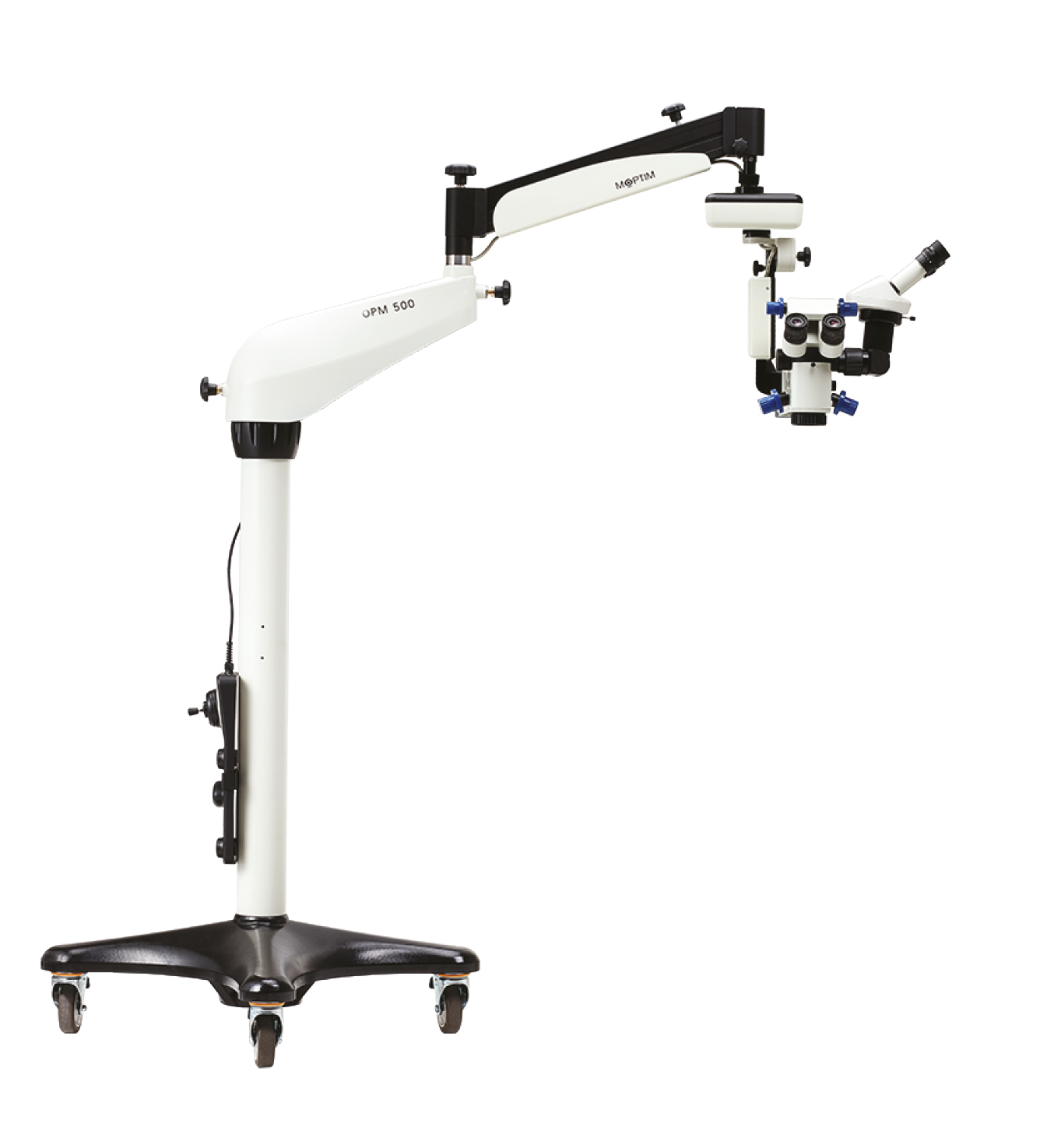

Mounting system: Compact foot with 4 movable rollers, with foot brakes
Maximum reach: 1070mm
Camera system
Type: Integrated HD Video recording system
Video/photo: Resolution: 1920×1080
Storage time: ＞6h
