Specifications

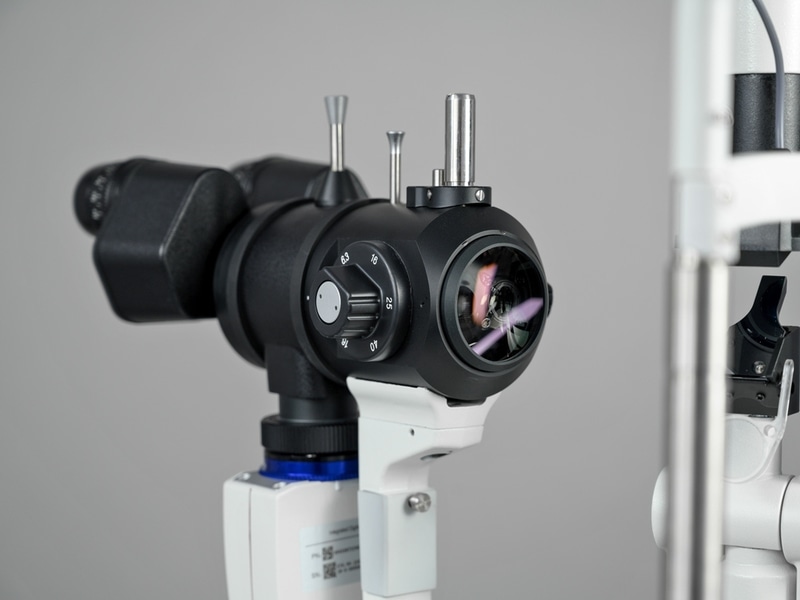

Optical System
- Type: Galilean converging binoculars 10°
- Magnification: 5-step rotating drum change, 6×, 10×, 16×, 25×, 40×
- Eyepiece: 12.5×
- Field of view: 36.2, 22.3, 14, 8.9, 5.7 mm
- Interpupillary distance: 52 to 80 mm
- Dioptre adjustment: -8 D to +8 D
Slit Projection & Base
- Aperture diameters: 0.2, 3.5, 8, 14 mm

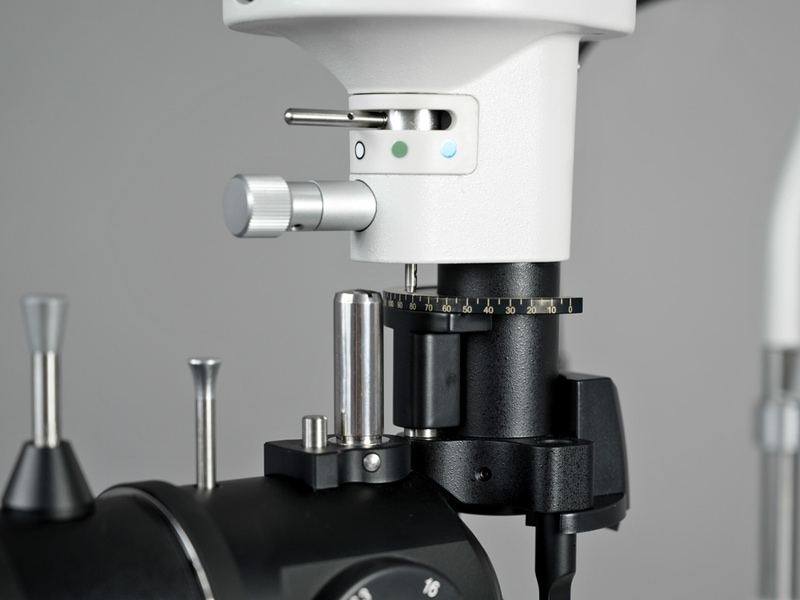

- Filters: Yellow, red-free, neutral density, blue, IR heat-absorbing filter, diffuser
- Slit angle: 0° to 180°
- Slit inclination: 5°, 10°, 15°, 20°
- Base travel: 30 mm Z-axis, 115 mm X-axis, 110 mm Y-axis
- Chin rest vertical movement: 80 mm
- Horizontal fine adjustment: 12 mm
- Fixation lamp: Red LED
- Light source: White LED
- Luminance: ≥150 klx
