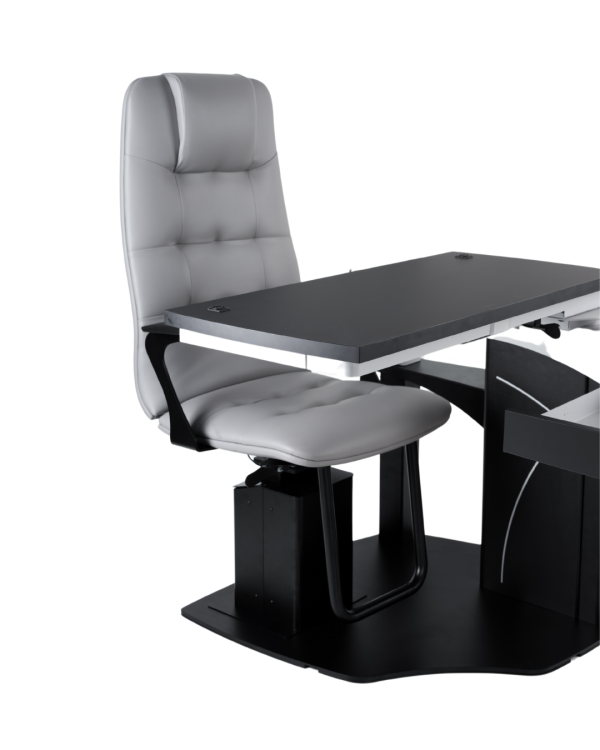

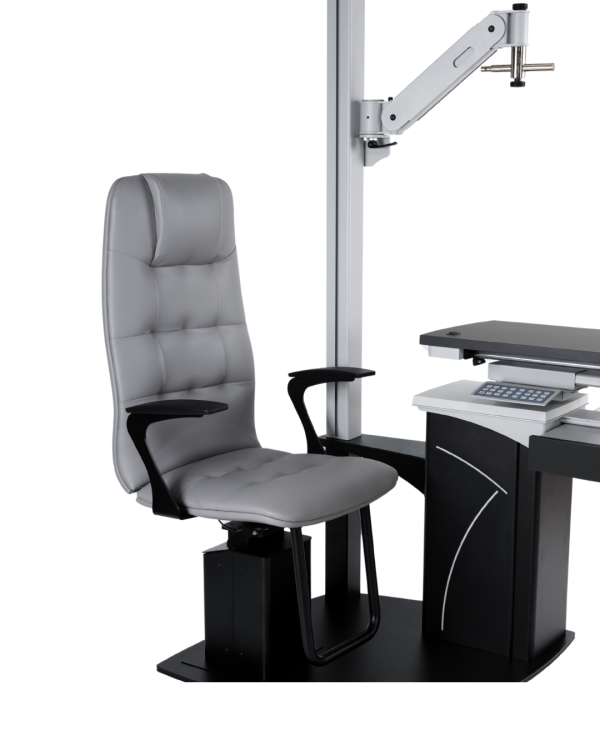

Elevating and Rotating Patient Chair

The MDS-14 features an elevating patient chair with a height adjustment from 48 cm to 63 cm, offering a 15 cm lift. This helps ensure correct positioning and patient comfort during examinations.
In addition, the chair rotates 360°, allowing flexible and easy patient positioning.

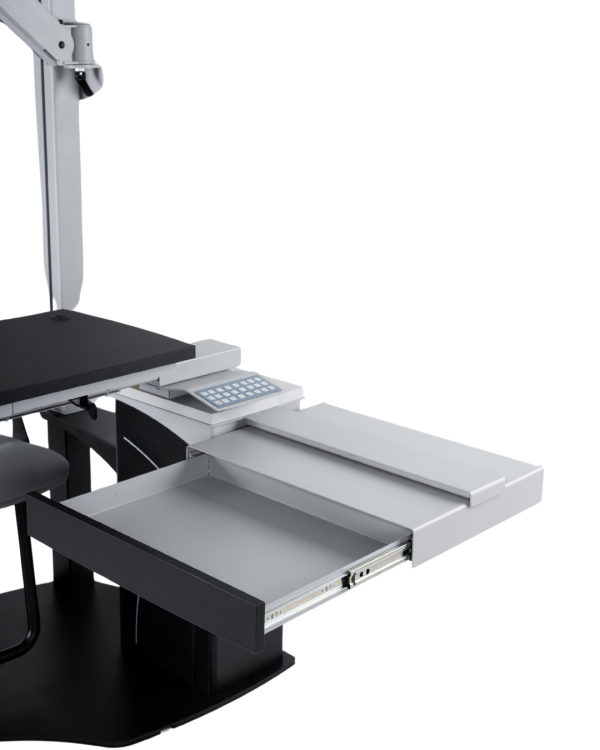

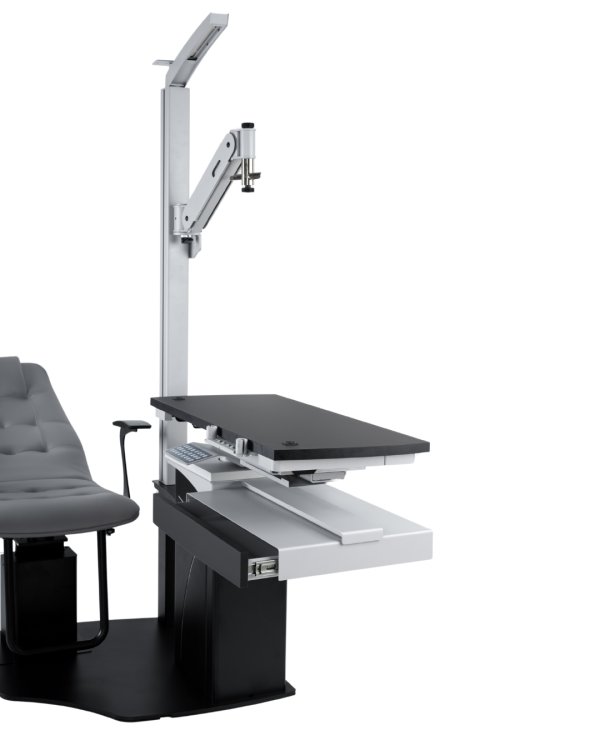

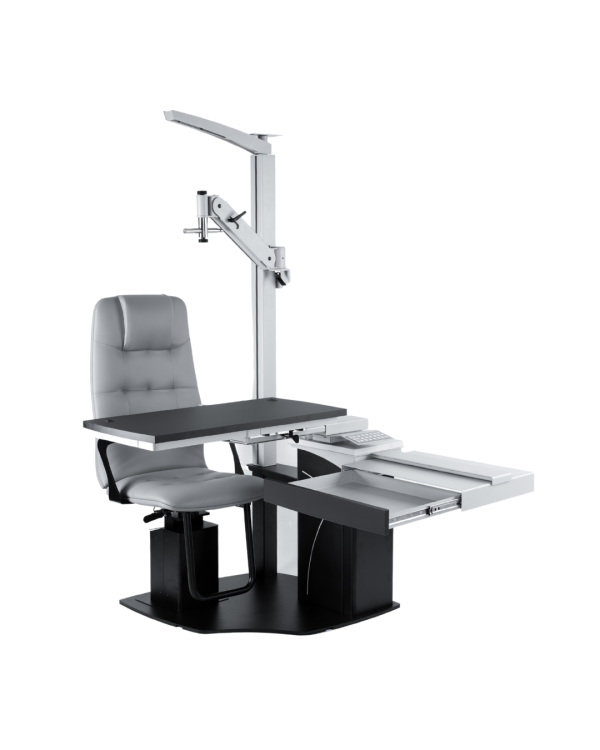

Fixed and Sliding Tabletop Options

The MDS-14 is available in two main configurations, so you can choose the option that best suits your workflow:

• MDS14: Elevating chair with a fixed-height tabletop for one instrument

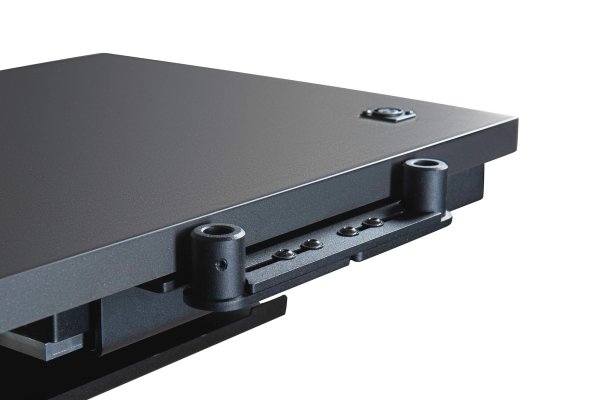

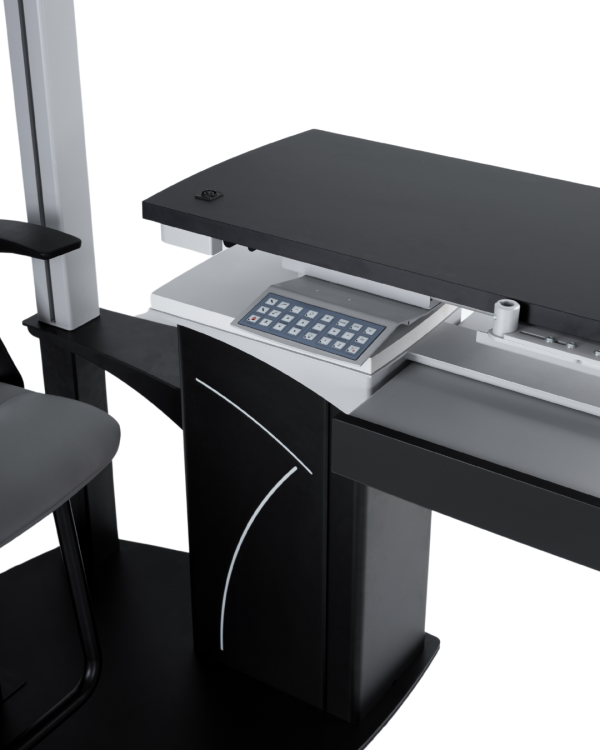

• MDS14S: Elevating chair with a fixed-height sliding tabletop for two instruments, improving instrument access and efficiency

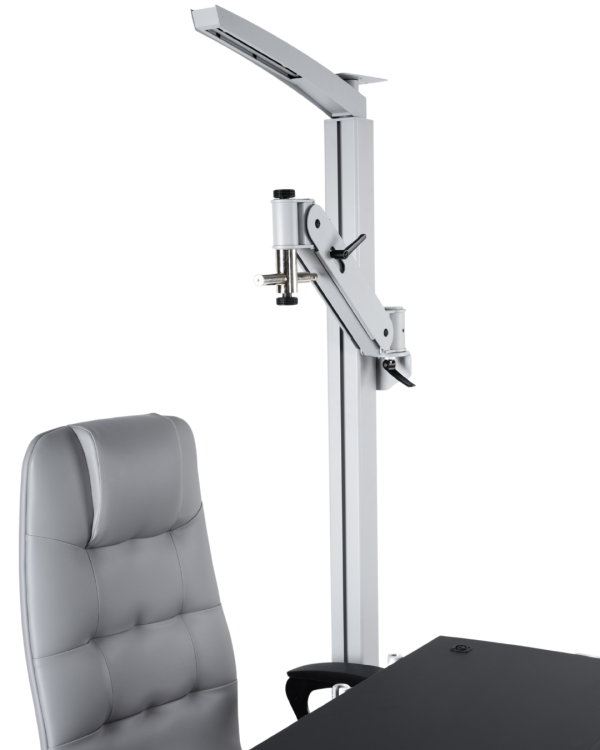

Integrated Illumination

The unit includes a column with an overhead LED lamp and adjustable brightness. As a result, it provides clear and precise lighting for examination tasks.

Chart Projector Support

The MDS-14 comes with support for a chart projector, making comprehensive eye testing simple and effective.

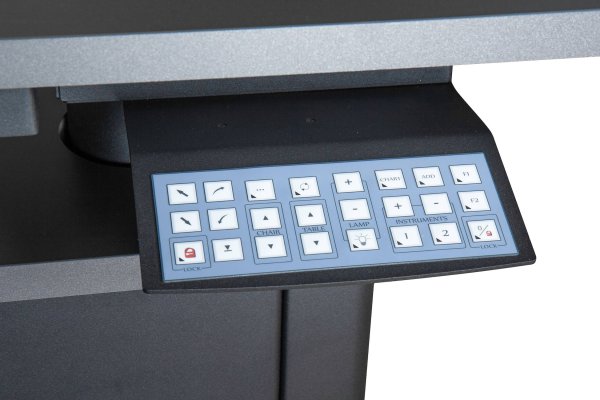

Instrument Power Management

• Integrated adjustable power transformers support slit lamps and ophthalmometers.

• A 230V outlet powers additional instruments such as auto lensmeters and auto phoropters.

This ensures that all instruments remain powered and ready for use.

Customization Options

Color Choices

The MDS-14 is available in various colors for metal parts and tabletops. This makes it easy to match the unit to your practice’s interior.

Right–Left Conversion

The unit can be converted from right-handed to left-handed use directly at the customer site, allowing flexibility for different practitioners.

Optional Accessories

To further adapt the MDS-14 to your needs, the following accessories are available:

• Phoropter arm

• Foot rest (fixed, tip-up, or tube)

• Arm rests (fixed, tip-up, or tip-up with chair upholstery)

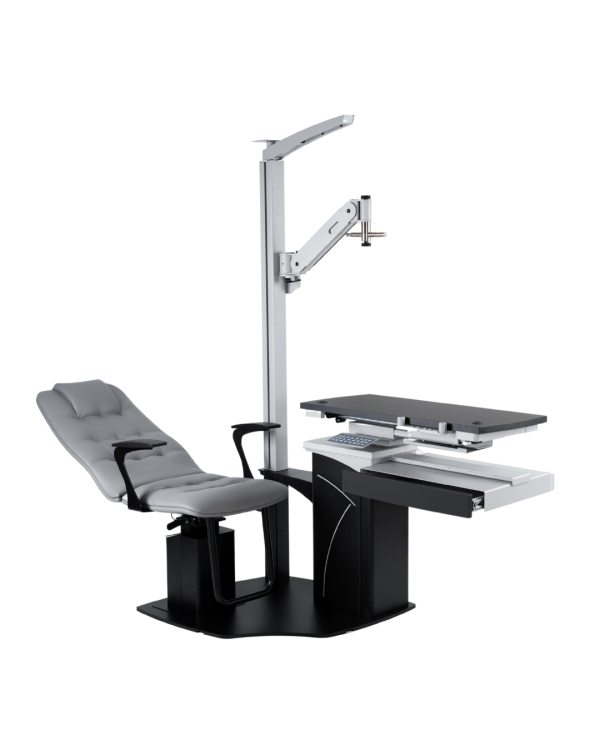

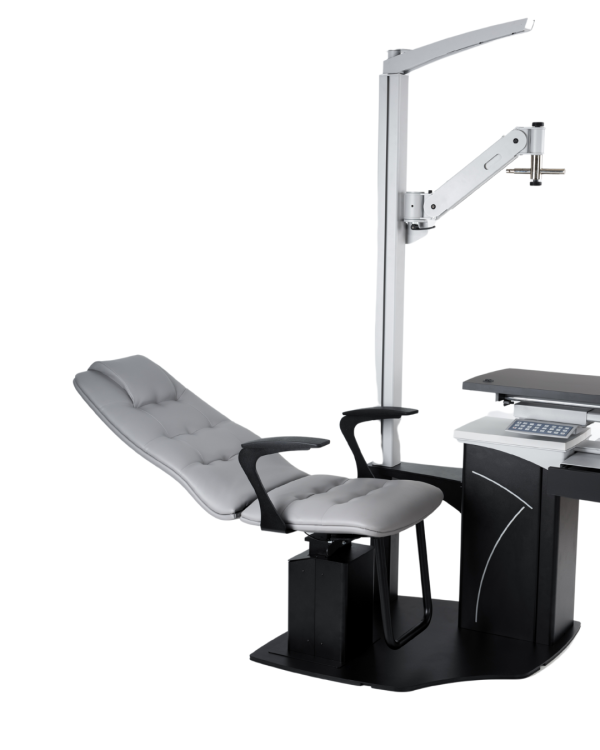

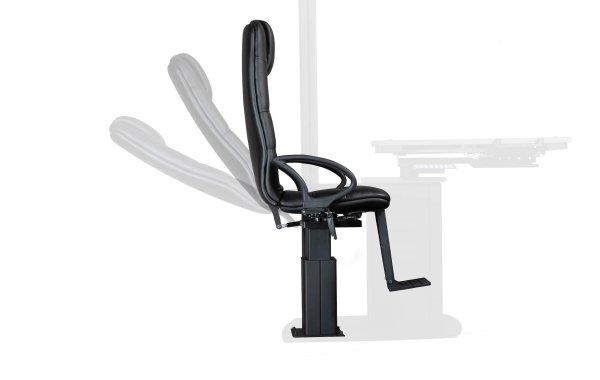

• Chair with reclining back for extended examinations

• Chair sliding: manual (13 cm) or motorized (14 cm)

• Foot switch control for chair height adjustment

• Custom drawer options integrated into the workstation

• Installed data cables (FireWire, USB, RS232)

• Cabinet on castors with three drawers

• Stand for the digital phoropter operational panel

• Liftboy assistant: Height-correcting system for the MDS14S model

• Pillow for children

Why Choose MDS-14?

Enhanced Workflow

The ergonomic layout and flexible configurations help practitioners work more efficiently.

Patient Comfort

The adjustable chair, rotation, and optional reclining back keep patients comfortable during examinations.

High Customization

With multiple configurations, accessories, and color options, the MDS-14 adapts easily to different clinical needs.

Professional Appearance

The modern design creates a clean, professional, and welcoming practice environment.

Elevate patient care and daily efficiency with the MDS-14 — a flexible and ergonomic ophthalmic unit designed for modern eye care practices.

Technical information

• Voltage: ~115+/230V 50/60Hz
• Max height: 196cm
• Table height from the ground: From 83cm to 86cm (15cm lift)
• Chair rotation: 360°
• Instruments power supply: -230V, programmable 5-20V AC or DC, dimmable or permanent
• Max weight of the instruments:
  • MDS14 (1st) 20 kg
  • MDS14S (1st-2nd) 15 kg - 20 kg
